GES9UGE Underfloor Box with 3 Slots – High-Quality OBO Bettermann Floor Box
OBO Floor Box
330 SAR

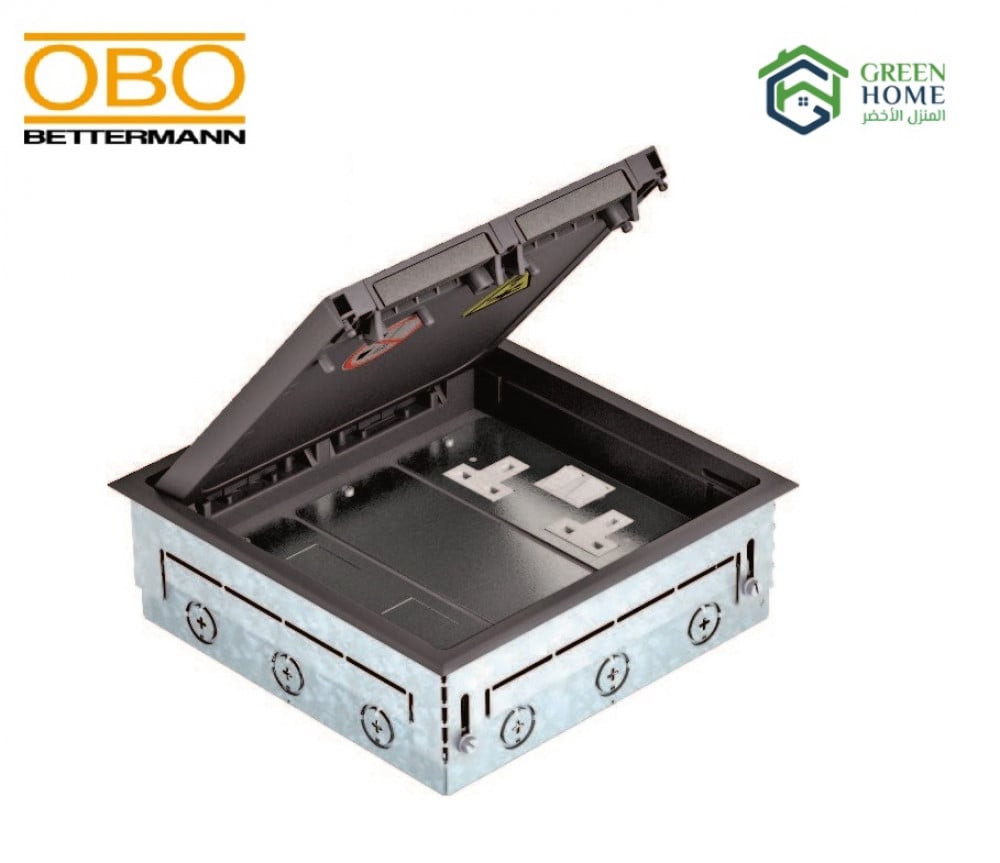

GES9UGE Underfloor Box - Item No. 7429699
Elevate your indoor flooring solutions with our state-of-the-art Underfloor Box. Designed for screed floors, this square screed socket comes equipped with the GES9 UGE service outlet. With pre-marked insertion openings for pipelines (M25) on all sides, installation is a breeze.
Key Features:
- Dimensions: 264x264x91 mm
- Color: Iron grey (RAL number 7011)
- Material: Durable Polyamide (PA)
- Installation Depth: Minimum of 64 mm with a height-adjustment range of +23 mm.
- Cover Plates: The package includes three cover plates. A blank version, one with a double BS socket, and another designed for the installation of four data connection sockets of type LJ6UC.
Technical Specifications:
- External Dimensions: 264x264 mm
- Number of Installable Devices: 12
- Number of Mounting Boxes: 3
- Floor Covering Thickness: 10 mm
- Installation Depth: 70 mm
- Height-Adjustment Range: 70 - 95 mm
- Frame Version: Carpet protection frame
- Installation System Type: MT4
Additional Features:
- Floor covering protection frame included
- Suitable for various installation types including screed-flush closed underfloor ducts, screed-covered underfloor ducts, raised floor, cavity floor, and more.
- Comes with a floor covering recess
