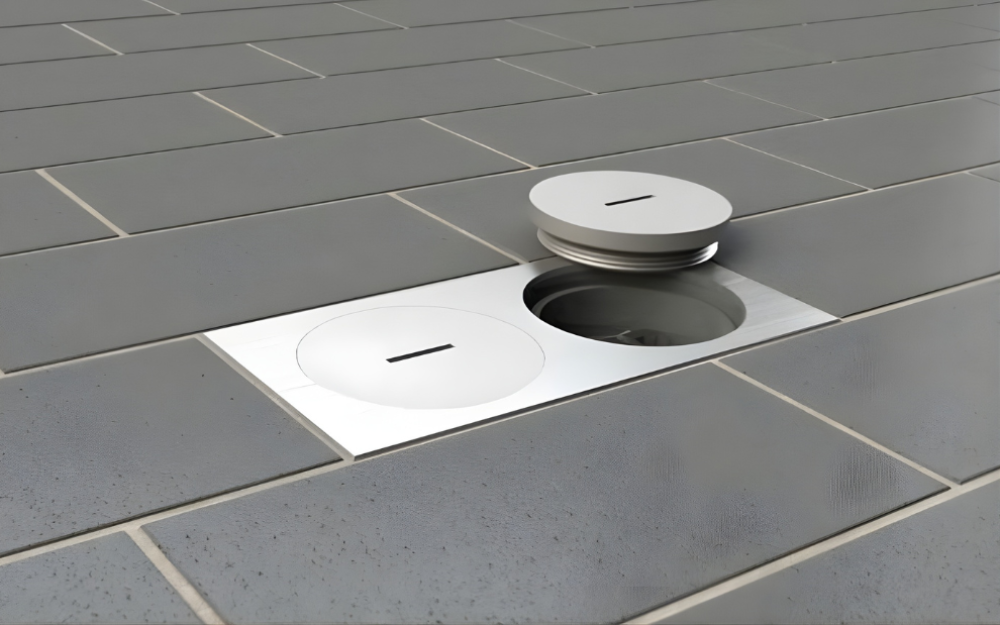

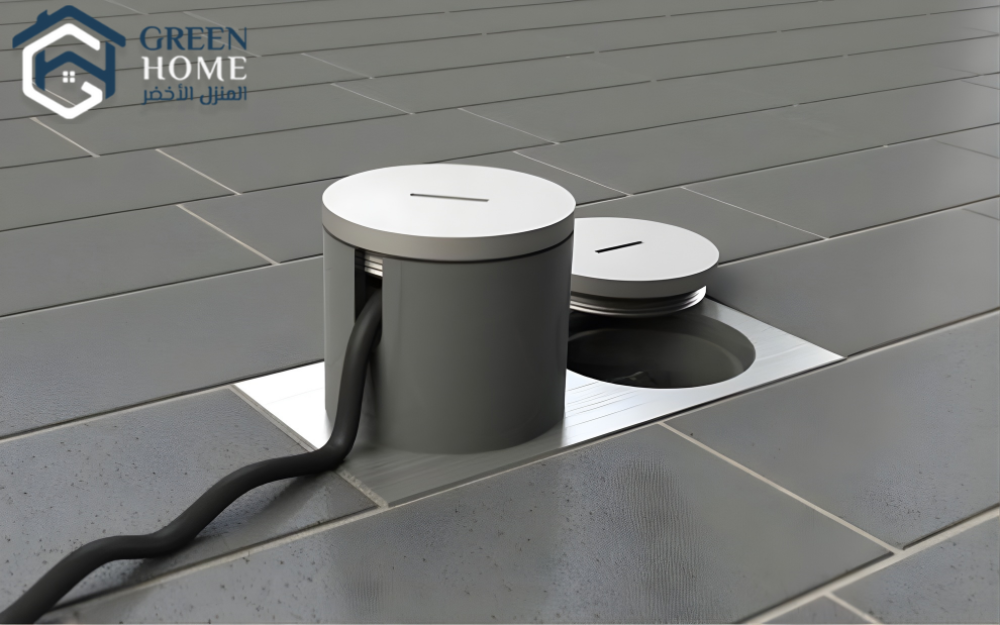

"STAKOHOME-7602-A Multi-Function Floor Box with 230V Sockets, RJ45 Ports, and Rubber Cover (IP67 Protection Rated)

Description:

A durable, multi-functional floor box, perfect for both indoor and outdoor use. It features IP67 protection against water and dust, making it an ideal choice for installation in terraces, gardens, commercial areas, or any location exposed to various weather conditions. The box is equipped with 230V electrical sockets and RJ45 Cat.6a ports, along with a rubber cover that provides additional protection against the elements. It allows you to supply power and secure internet connectivity in any environment, even in wet or water-exposed areas.

Key Features:

• High Protection:
• IP67 protection against water and dust, making it suitable for use in outdoor environments or in damp areas such as bathrooms or water treatment plants.
• Multiple Functions:
  • STAKOHOME-7602-A type: 2x 230V power sockets
  • STAKOHOME-7602-Anw type: 2x RJ45 Cat.6a ports
  • STAKOHOME-7602-Anw type: 1x 230V socket, 1x RJ45 Cat.6a port
  • Customizable to other port types based on your needs.
• Durable and Robust Design:
• The body is made of corrosion-resistant, durable PVC, while the frame and cover are constructed from anodized aluminum, offering high resistance to harsh weather conditions. The rubber cover provides additional protection against water and dust.
• Easy Installation:

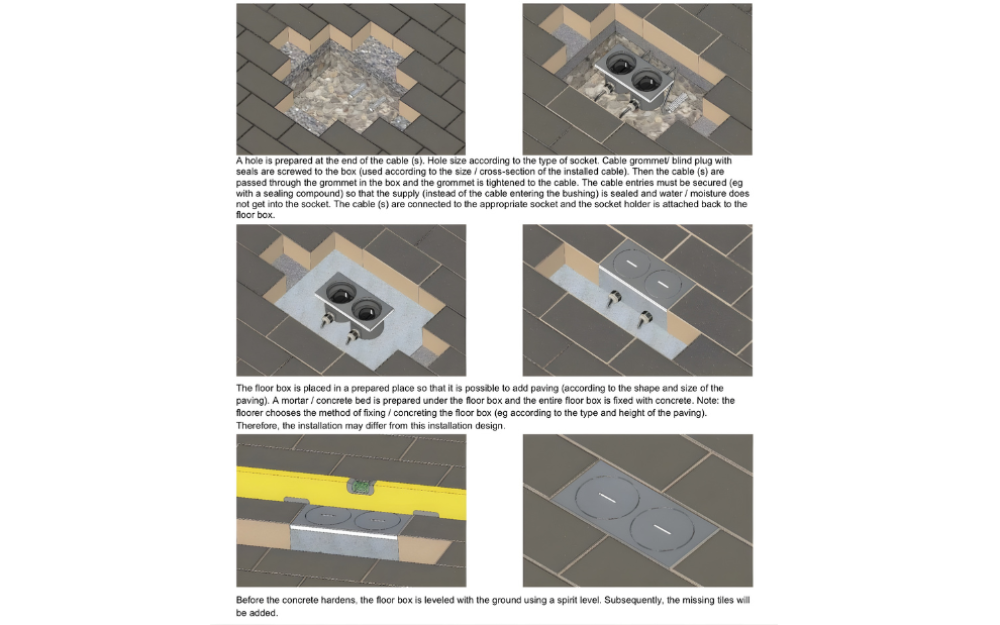

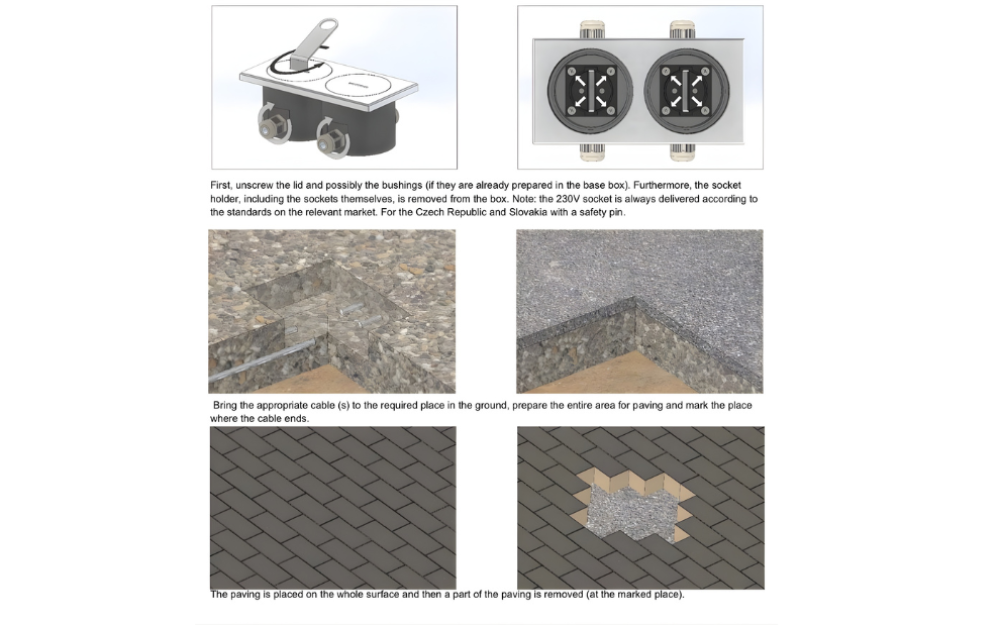

• Comes with clear and simple installation instructions, and the box can be mounted into the ground or mortar using a spirit level for precise positioning.

Ideal Applications:

• Outdoor Areas:
• Perfect for use in gardens, patios, and terraces, providing safe electrical and networking connections.
• Commercial Areas:
• Performs excellently in stores and facilities exposed to changing weather conditions.
• Damp Environments:
• Suitable for use in swimming pools, water treatment plants, and areas needing protection against water and dust.

Technical Specifications:

• Materials:
  • Body: Solid PVC (PVC-U)
  • Cover: Anodized aluminum for weather resistance
  • Rubber cover: Additional protection against water and dust

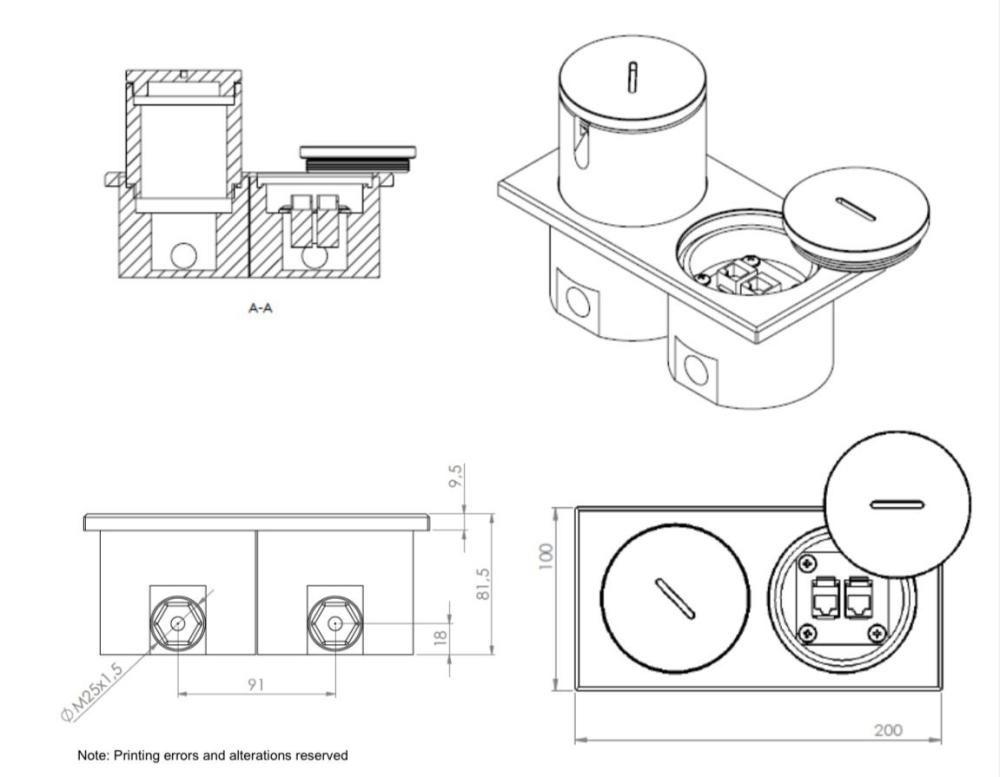

• Dimensions:
  • Length: 200 mm
  • Width: 100 mm
  • Height: 82 mm
  • Weight: Approximately 1.2 kg
  • Load capacity: 900 kg
• Available Accessories:

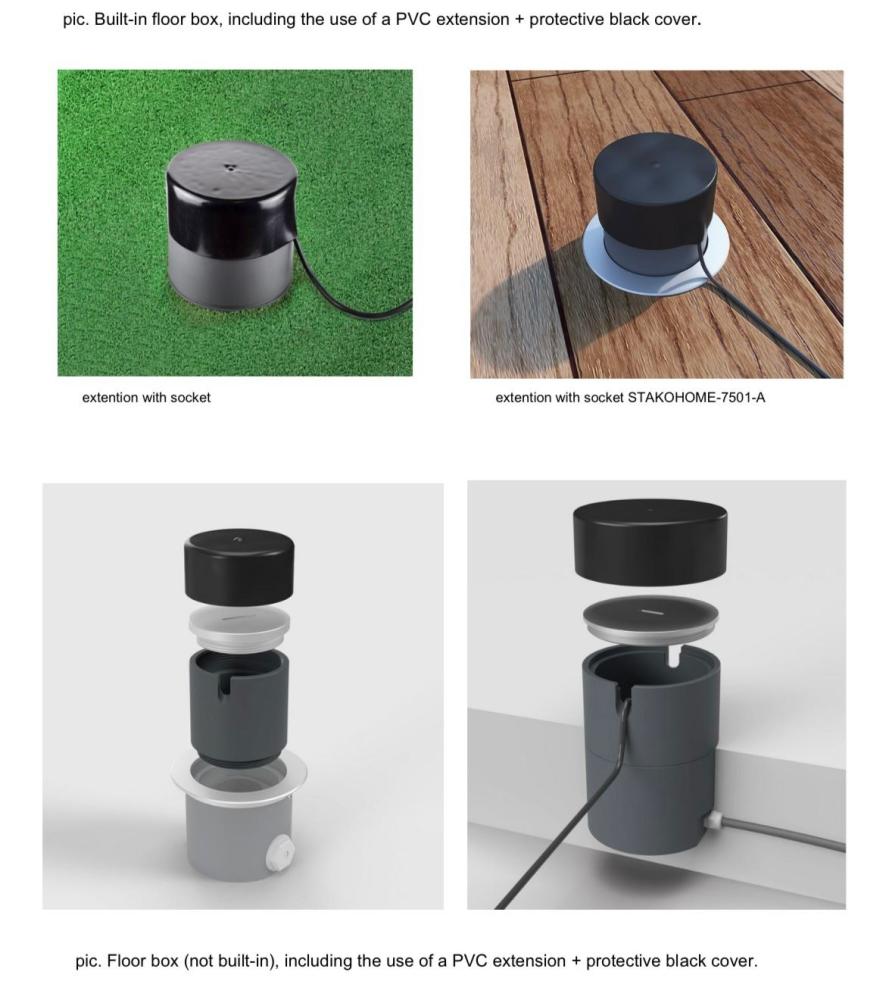

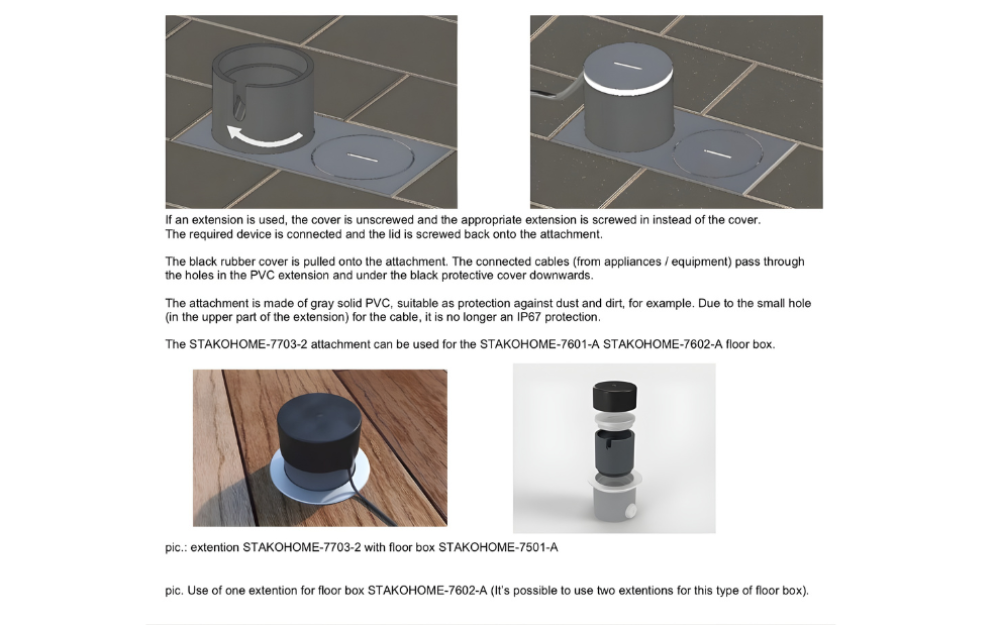

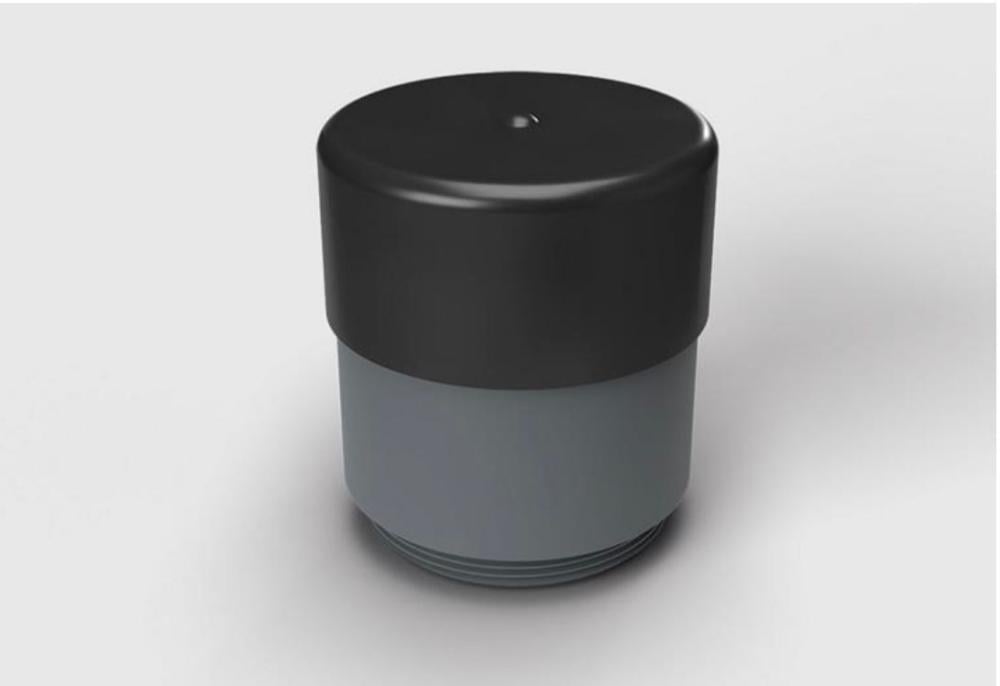

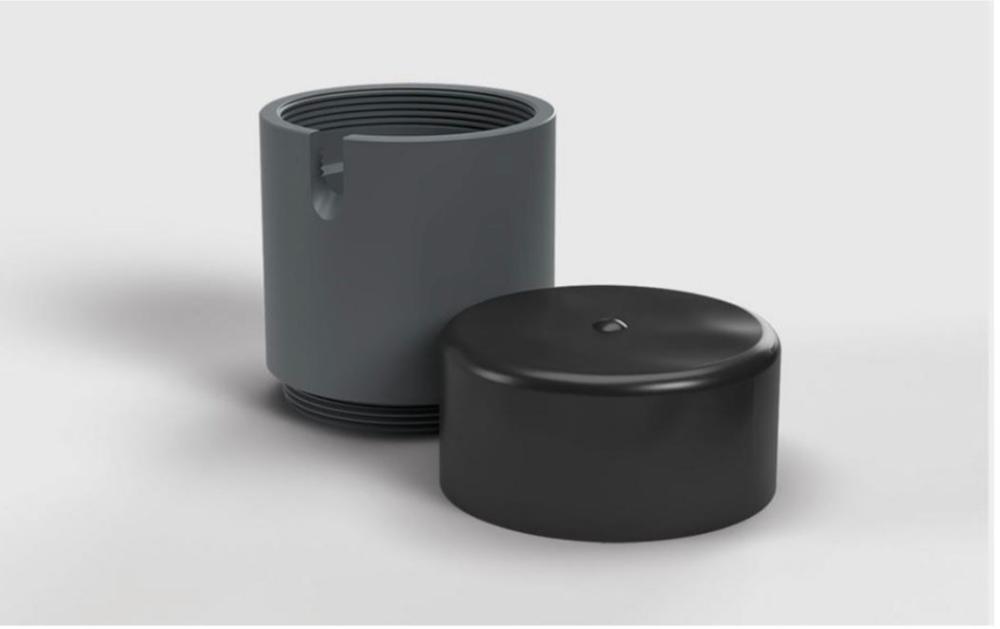

  • STAKOHOME-7703: Extension ring for water and dust protection
  • STAKOHOME-7706: Aluminum ring to adjust box height for terrace installation.

Maintenance and Recommendations:

• Maintenance:
• Regular cleaning of the box is required to ensure optimal performance. Make sure the rubber cover is tightly secured to maintain the water protection level.
• Installation:
• Installation should be done according to instructions, using approved materials such as sealing compounds around the entries to prevent water leakage.

Why Choose STAKOHOME-7602-A?

The STAKOHOME-7602-A floor box is the perfect solution for applications requiring electrical and networking connections in various environments. With its durable design and resistance to weather conditions, this box guarantees excellent performance and exceptional protection against water and dust.
