GH-SOP-1 Flip-Up Mini Floor Socket with Back Box

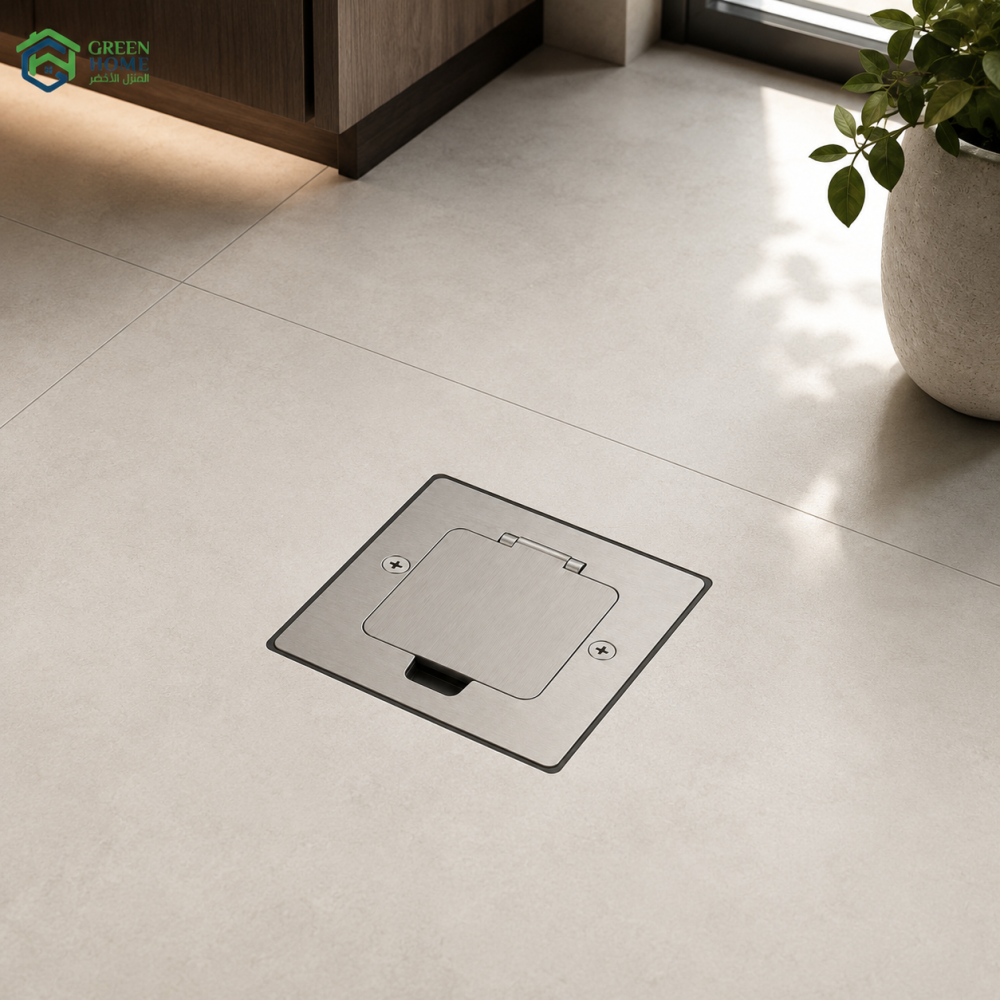

Green Home GH-SOP-1 Flip-Up Mini Floor Socket is a compact and practical floor socket solution designed for the Saudi market and modern indoor projects that require a clean, safe, and space-saving power access point integrated into the floor.

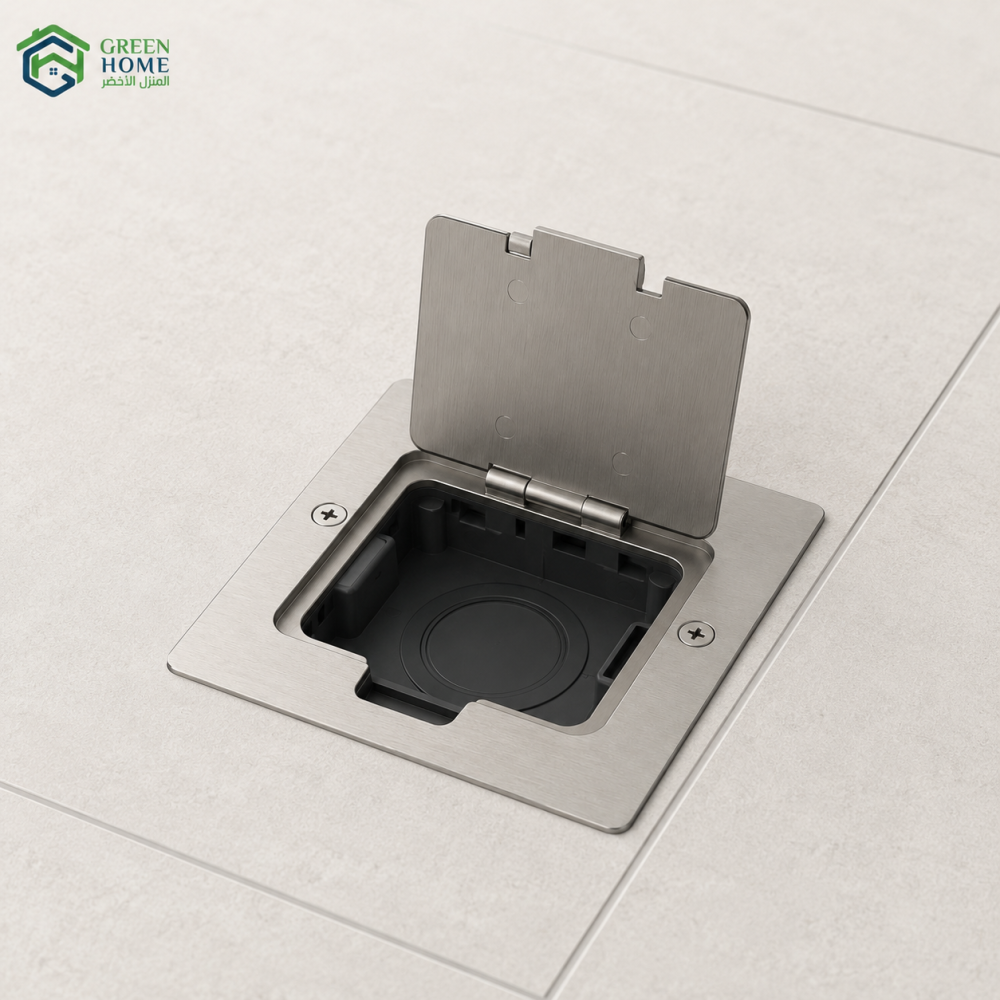

The product features a smart flip-up cover design that opens up to 180°, allowing easy access to the socket module while keeping the floor surface neat and organized when closed.

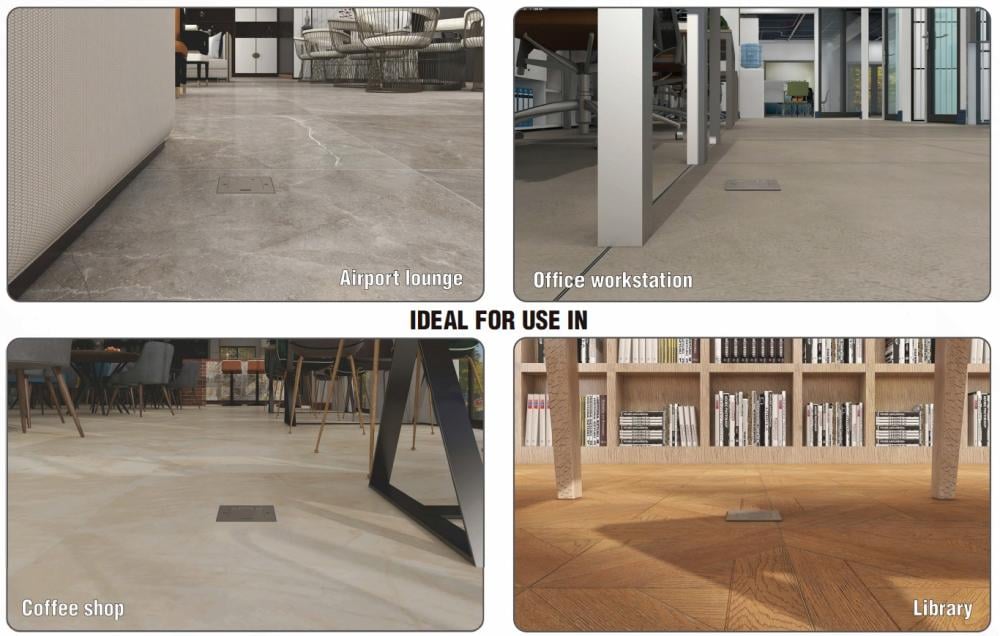

This mini floor socket is suitable for offices, workstations, coffee shops, libraries, waiting areas, meeting rooms, homes, villas, and commercial interiors that require a hidden and elegant floor power solution.

The GH-SOP-1 is compatible with Type 45 Series Modules and comes with a back box for installation. It also supports multiple-gang installation in concrete floors using the Push-Click-Connect system.

The product provides IP44 protection when closed and IK09 impact resistance when closed, with a durable Zinc Alloy cover panel and multiple finish options to match different interior design styles. These specifications match the product datasheet details for IP44, IK09, 180° opening, Type 45 module compatibility, material, and finishes.

Key Features

• Compact flip-up mini floor socket.

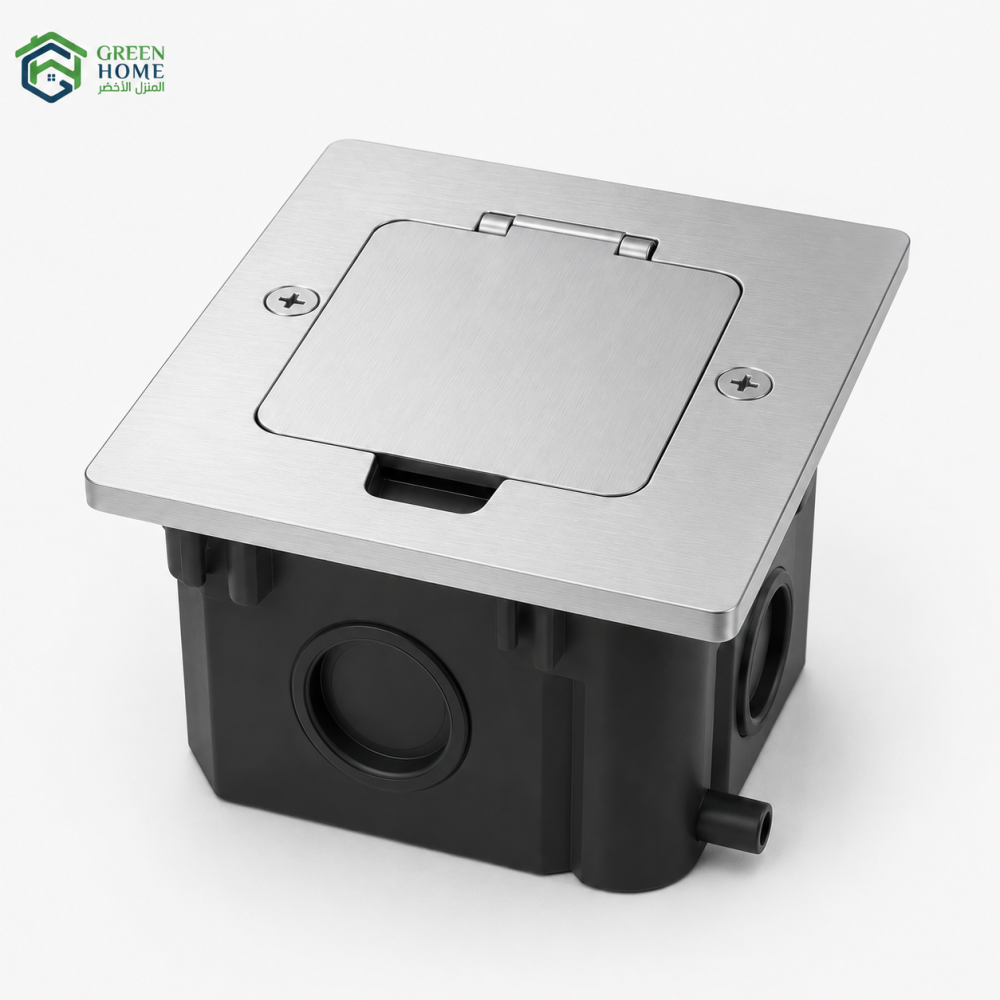

• Comes with a back box for installation.

• Designed for the Saudi market and indoor projects.

• Suitable for offices, workstations, coffee shops, libraries, homes, villas, and commercial spaces.

• Cover opening angle up to 180°.

• IP44 protection when closed.

• IK09 impact resistance when closed.

• Compatible with Type 45 Series Modules.

• Slim cover design that blends neatly with the floor surface.

• Supports multiple-gang installation using Push-Click-Connect.

• Available in multiple finishes to match modern interior designs.

Technical Specifications

• Brand: Green Home

• Series: GH-SOP-1 Series

• Product Type: Flip-Up Mini Floor Socket with Back Box

• Protection Rating: IP44 when closed

• Impact Resistance: IK09 when closed

• Cover Opening Angle: Up to 180°

• Module Compatibility: Type 45 Series Modules

• Cover Panel Material: Zinc Alloy

• Mounting Screws: Stainless Steel M3×30

• Back Box Material: PC+ABS

• Storage Temperature: -5°C to +30°C

• Operating Temperature: -10°C to +70°C

• Cleaning: Do not use detergents

Available Finishes

• Brushed Nickel

• Metallic Silver

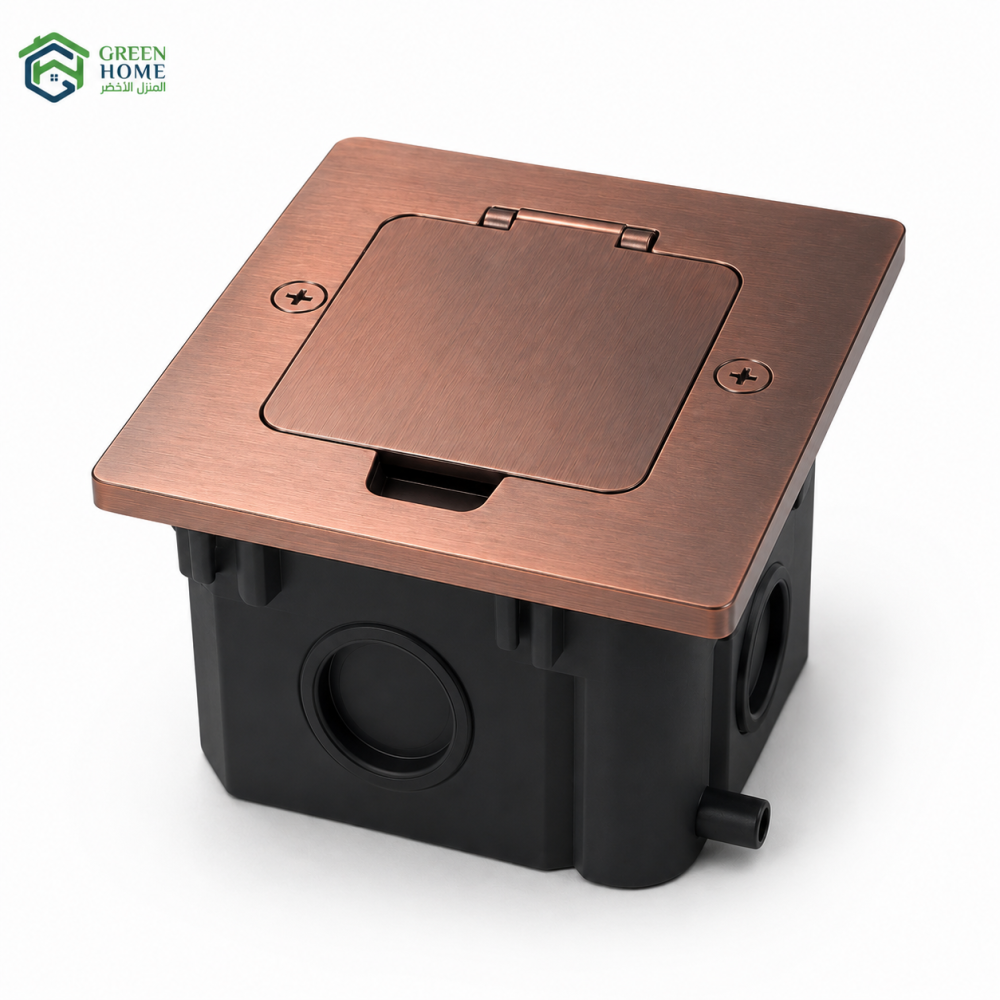

• Red Copper

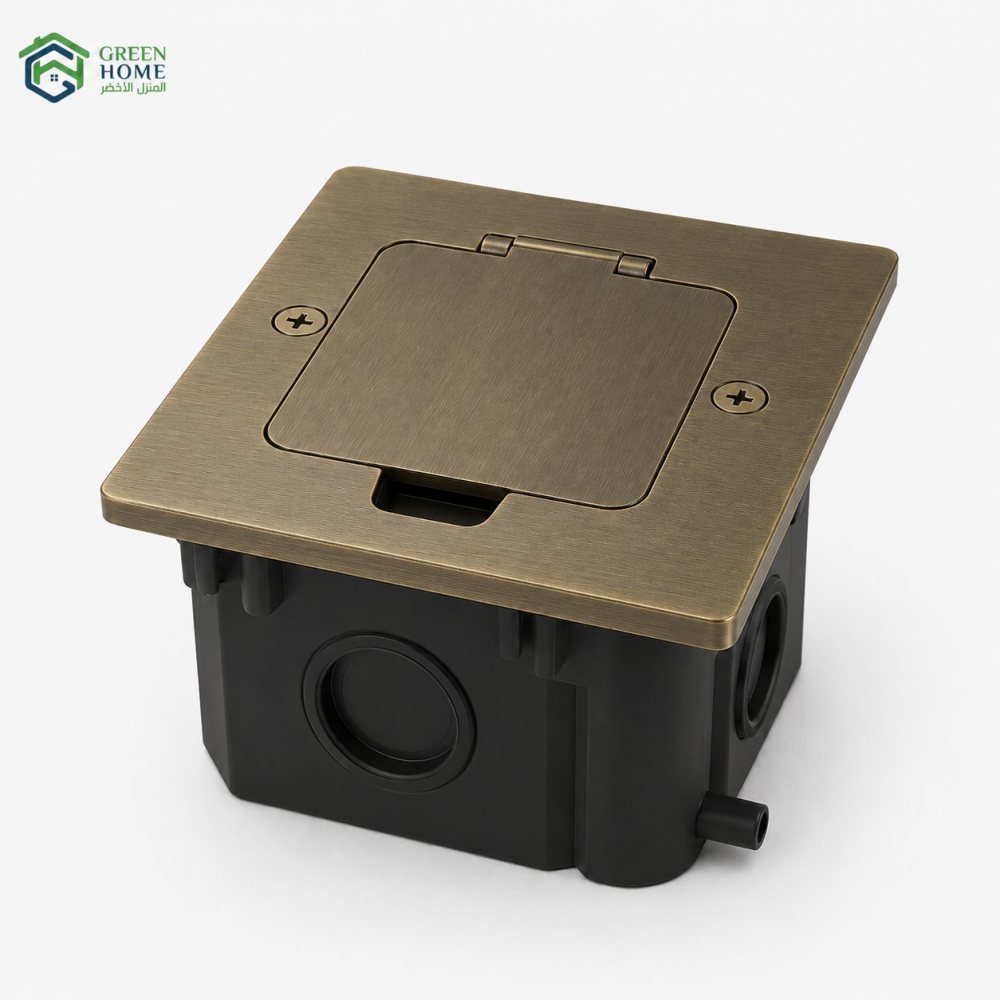

• Old Brass

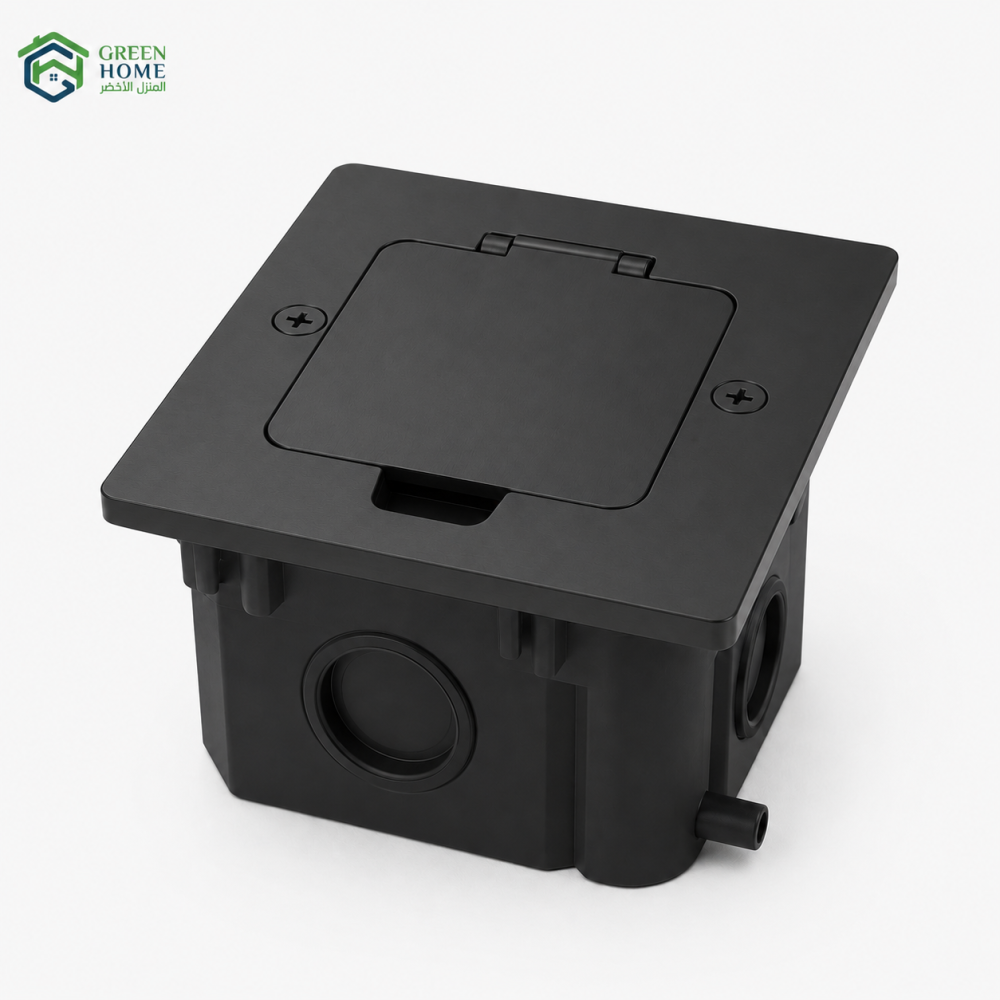

• Matte Black

Recommended Applications

• Offices and workstations

• Coffee shops and restaurants

• Libraries and reading areas

• Waiting areas and reception spaces

• Homes and villas

• Meeting rooms

• Commercial interiors

• Projects requiring a compact hidden floor power outlet

FAQ

• Does this product come with a back box?

Yes, this product is supplied with a back box for installation.

• What is the protection rating?

The product provides IP44 protection when closed.

• Is the cover impact resistant?

Yes, the cover provides IK09 impact resistance when closed.

• What is the cover opening angle?

The cover can open up to 180° for easy access.

• Is it suitable for offices and coffee shops?

Yes, it is suitable for offices, workstations, coffee shops, libraries, waiting areas, homes, villas, and commercial interiors.

• Is it available in different finishes?

Yes, it is available in Brushed Nickel, Metallic Silver, Red Copper, Old Brass, and Matte Black.
