IP67 Waterproof Floor Box with Electrical Sockets, RJ45 Ports, and Rubber Cover - STAKOHOME-7702-A

Description:

A multi-functional floor box, perfect for both indoor and outdoor use, offering high protection against water and dust with IP67 rating. It comes with 230V power sockets and RJ45 Cat.6a ports, making it an ideal choice for gardens, terraces, commercial areas, and wet zones. It features a strong and attractive design, allowing for easy and secure installation. It also includes a rubber cover for additional protection against the elements.

Key Features:

• IP67 Protection:
• Provides full protection against water and dust, making it ideal for outdoor use or in damp areas such as bathrooms or water treatment plants.
• Multiple Functions:

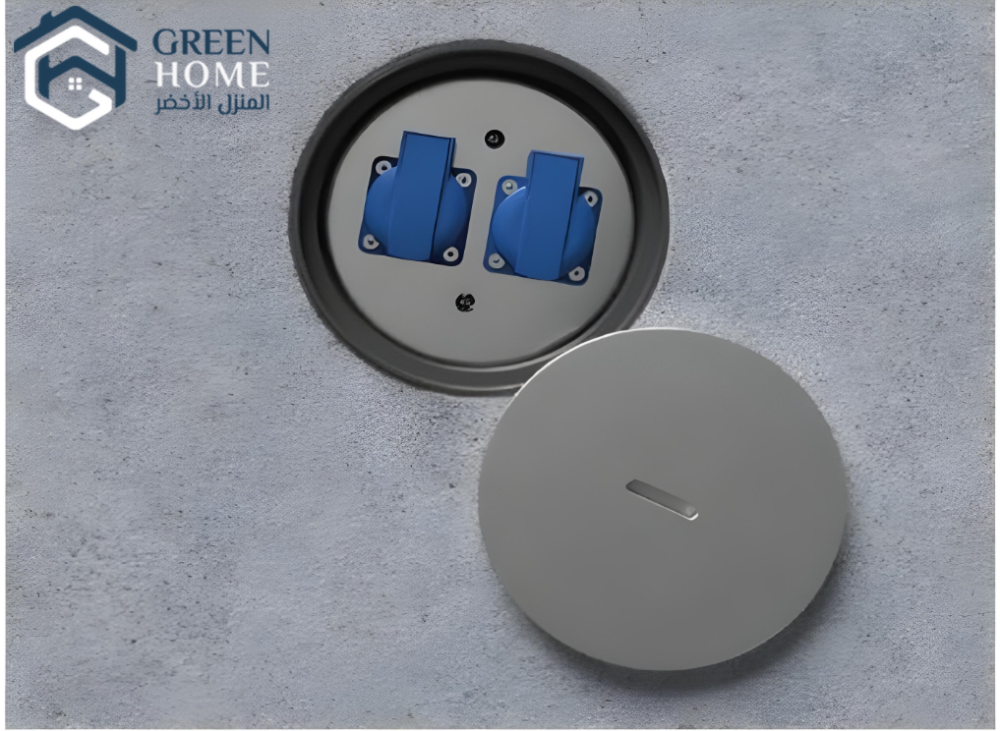

  • 2x 230V power sockets.
  • 2x RJ45 Cat.6a ports for high-speed data transfer.
  • Customizable to other socket and port types as needed.
• Durable Design:
• The body is made of solid PVC for durability and strength.

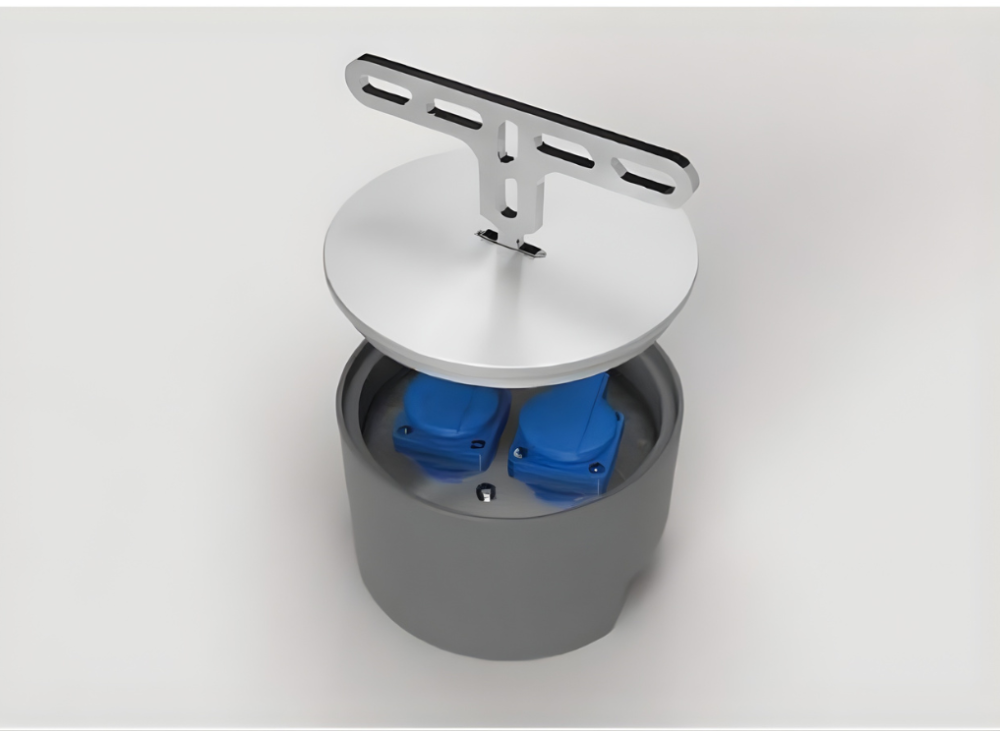

• The cover is made from anodized aluminum to withstand harsh weather conditions and corrosion, with an additional rubber cover for water and dust protection.
• Easy Installation:

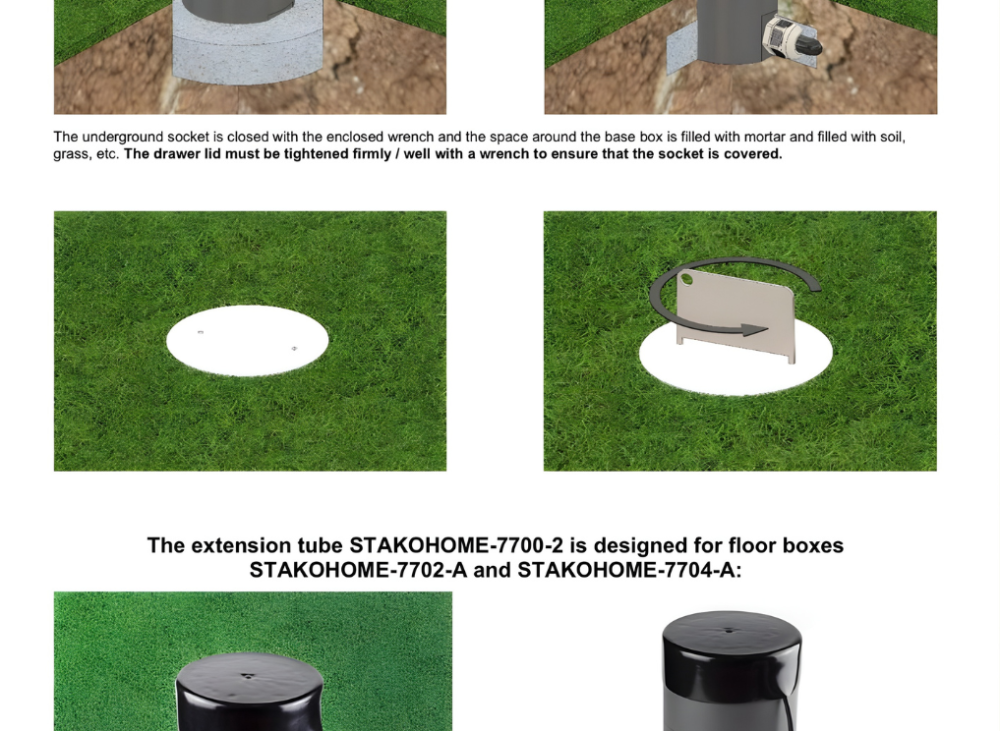

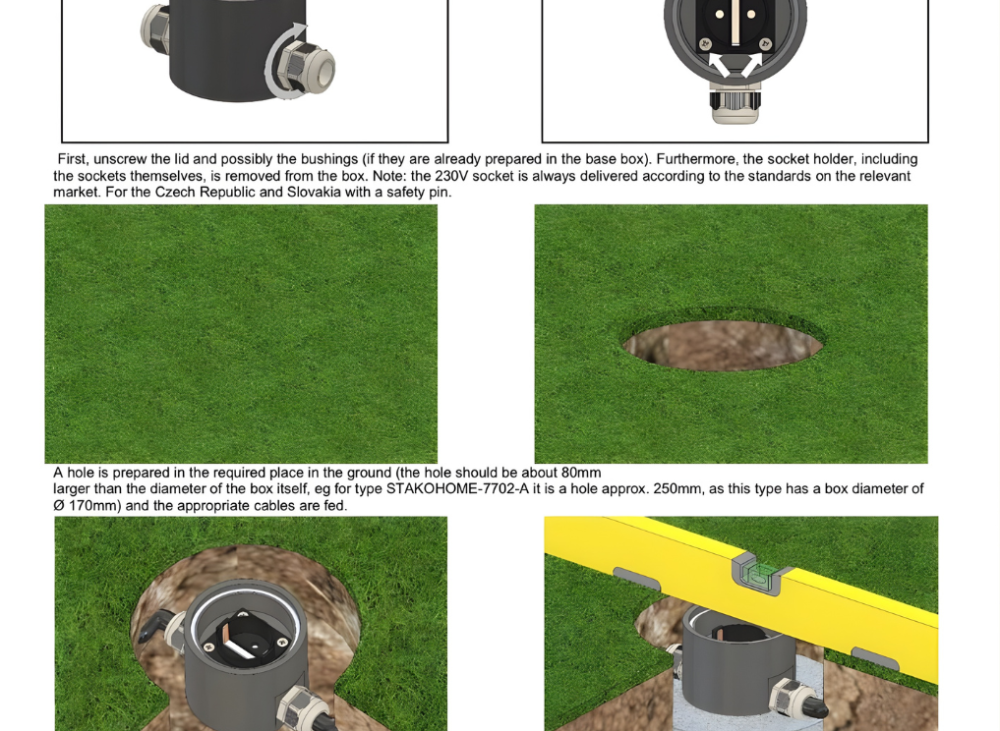

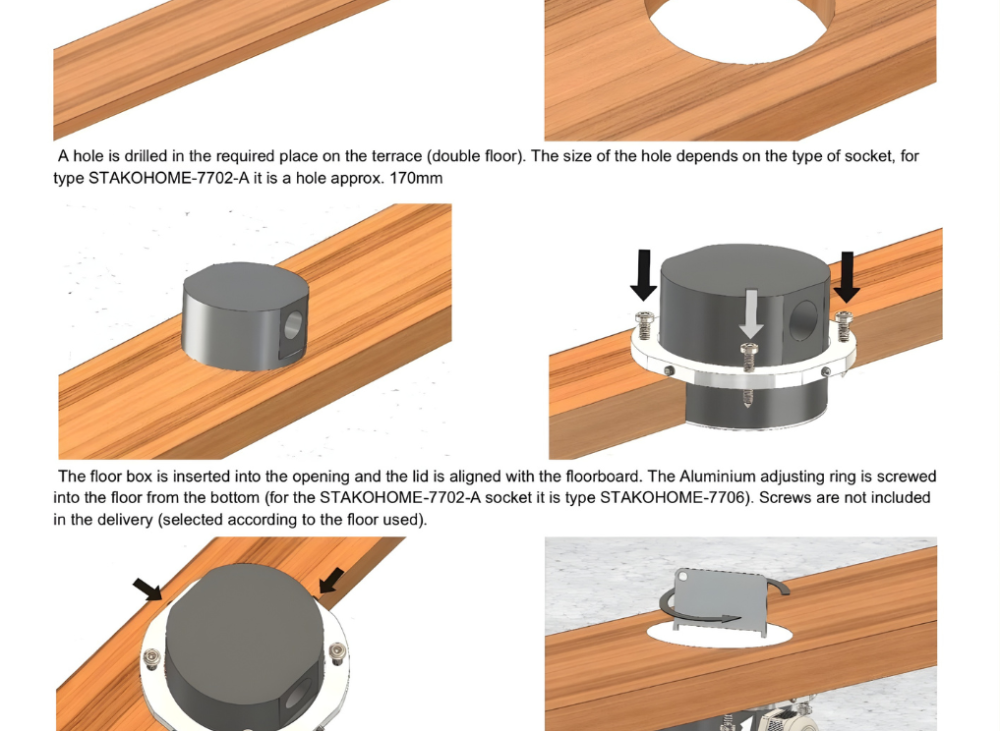

• Comes with clear installation instructions to ensure easy and secure mounting in mortar or the ground using a spirit level for proper alignment.

Ideal Applications:

• Gardens and Outdoor Areas:
• Provides safe power and internet connectivity in damp or outdoor environments.
• Commercial Areas and Terraces:
• Ensures excellent performance in workplaces or terraces exposed to the elements.
• Wet Facilities:
• Ideal for use in swimming pools, water treatment plants, or any area requiring water protection.

Technical Specifications:

• Materials:
  • Body: Solid PVC (PVC-U).
  • Cover: Anodized aluminum for weather resistance.
  • Rubber cover: Added protection against water and dust.

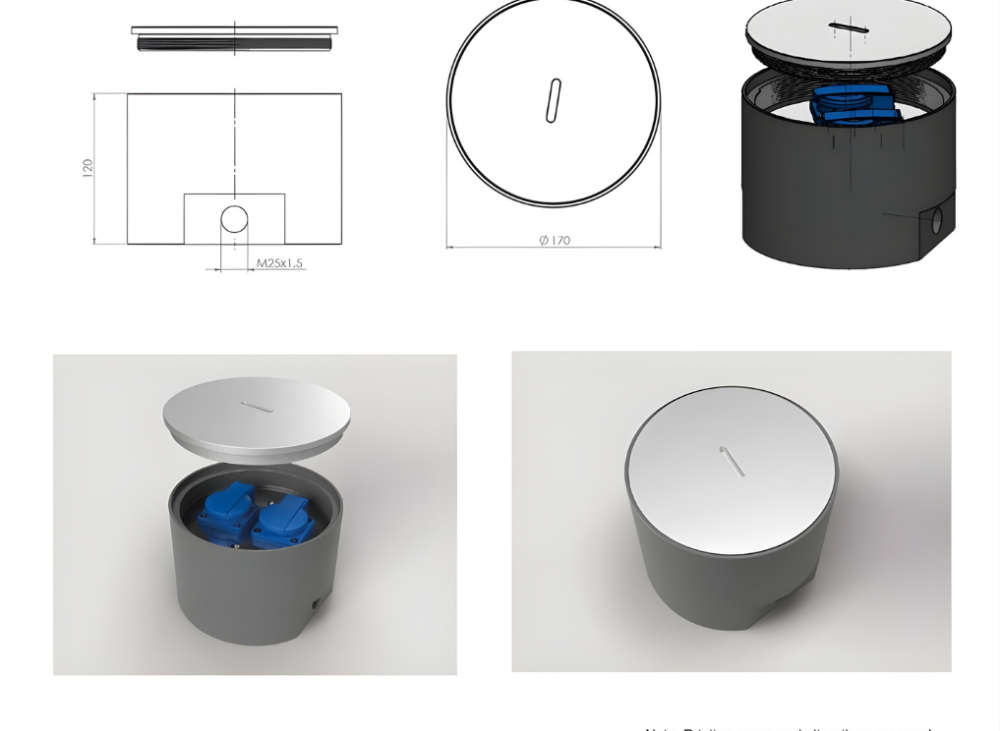

• Dimensions:
  • Diameter: Ø170mm
  • Height: 120mm
  • Weight: Approximately 2.5 kg
  • Load Capacity: Up to 200 kg
• Available Accessories:

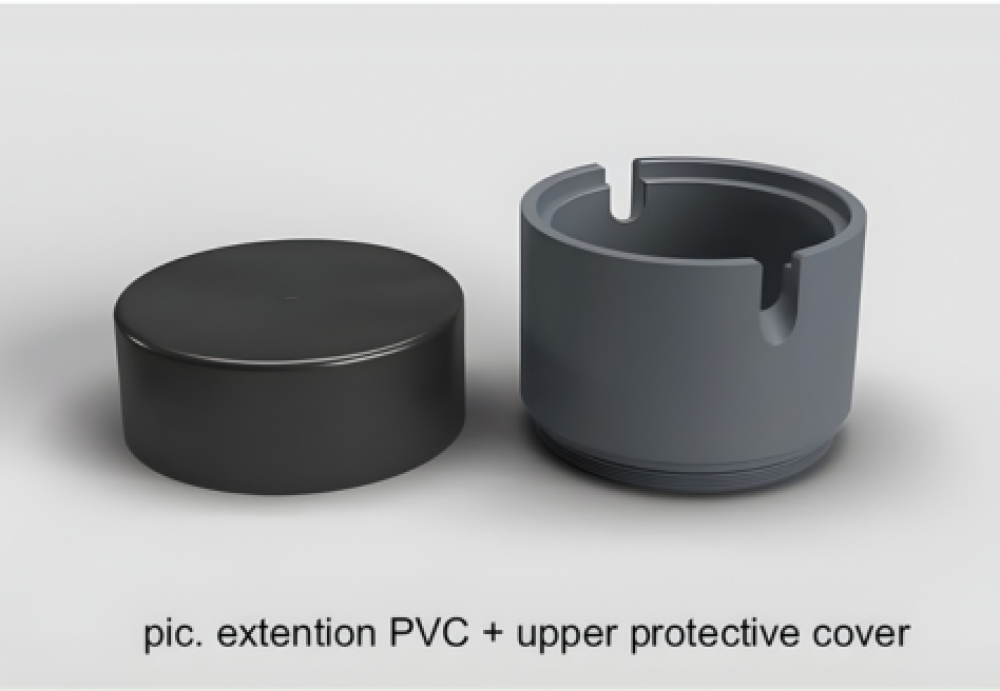

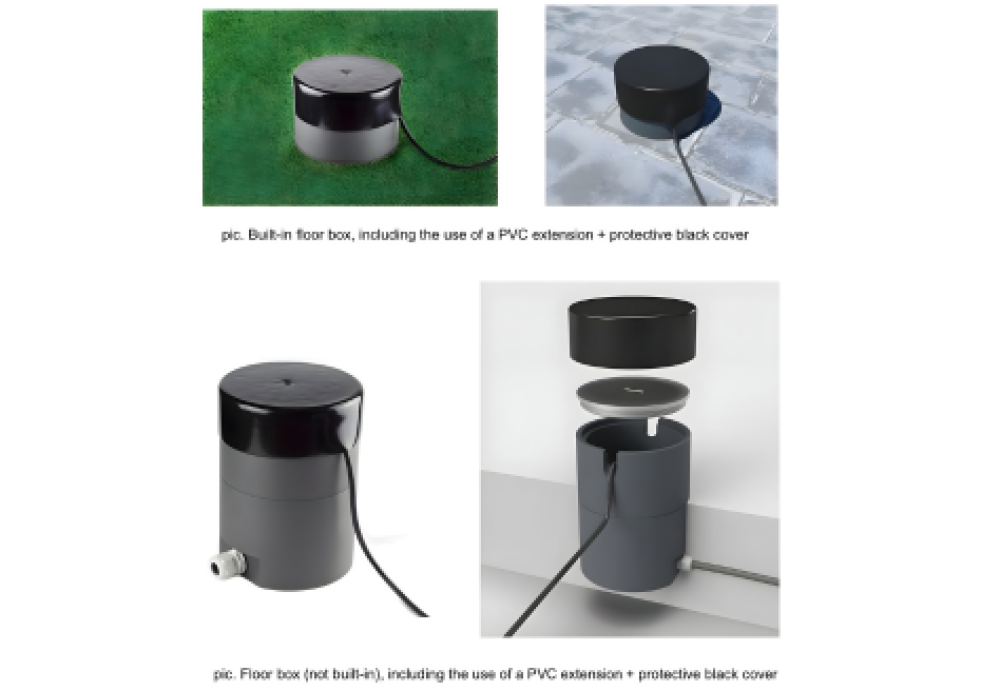

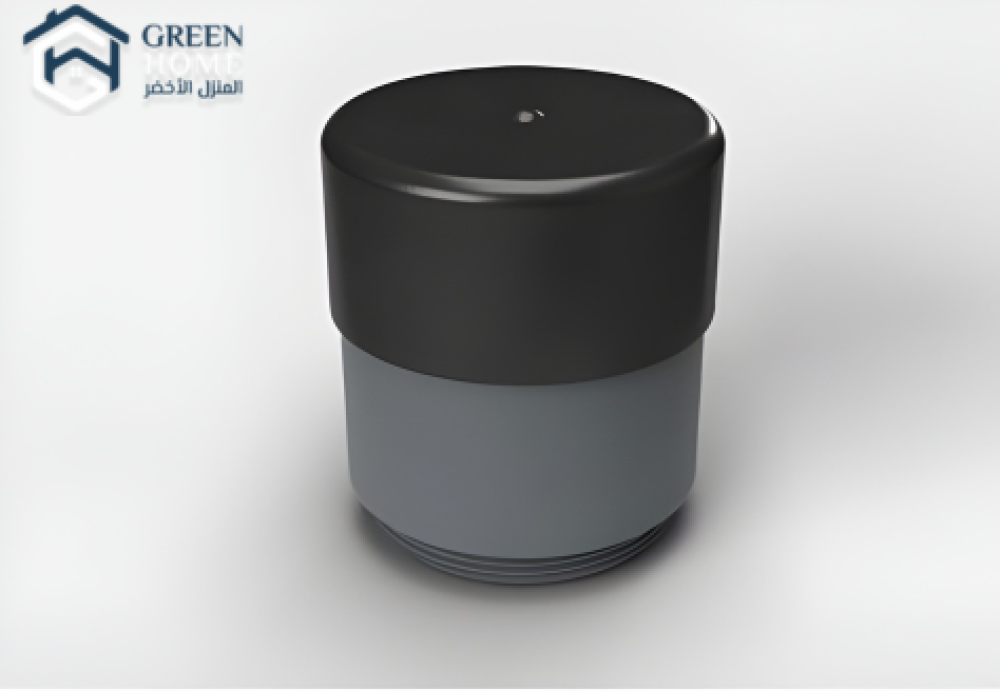

  • STAKOHOME-7700-2: Extension ring for rainwater protection.
  • STAKOHOME-7706: Aluminum ring to adjust the box height for terrace use.

Maintenance and Recommendations:

• Maintenance:
• Regularly clean the box to ensure optimal performance. Ensure the rubber cover is tightly secured to maintain water protection.
• Installation:

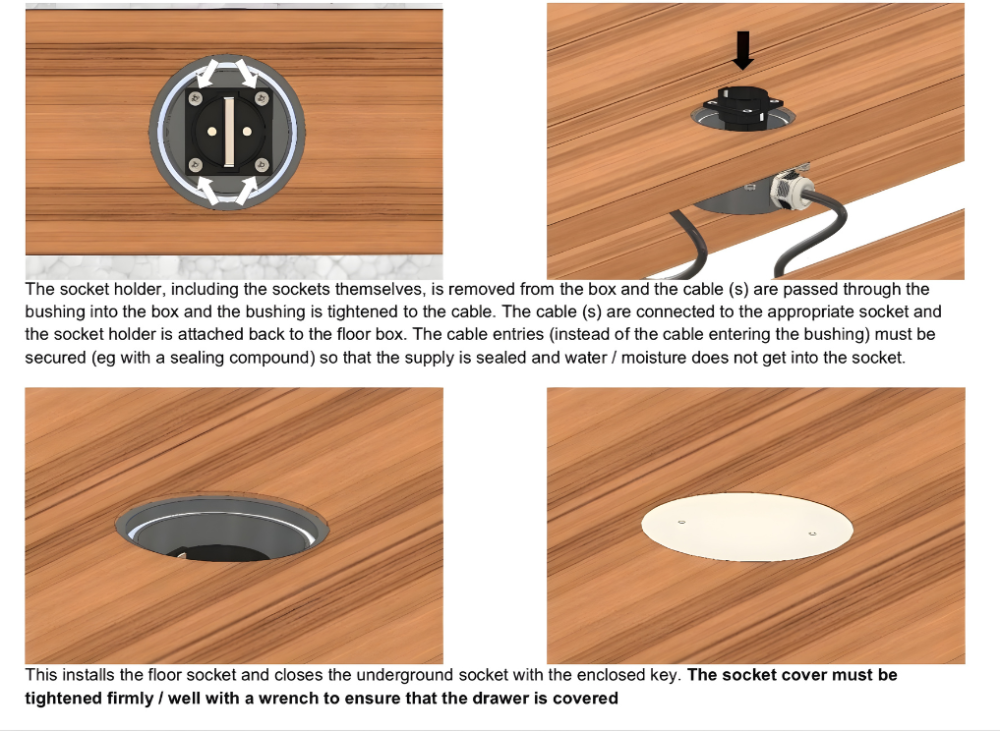

• The box should be installed according to the instructions using appropriate materials such as sealing compounds around the entries to prevent water leakage.

Why Choose STAKOHOME-7702-A?

The STAKOHOME-7702-A floor box is the perfect solution for locations requiring electrical and networking connections in various environments, both indoors and outdoors. With its water-resistant design, it provides high protection against harsh weather conditions, as well as ease of installation and maintenance.

Additional Tips:

If you need to customize the number of ports or sockets, we have various options to meet your specific needs. Contact us for inquiries about accessories or customizations.
