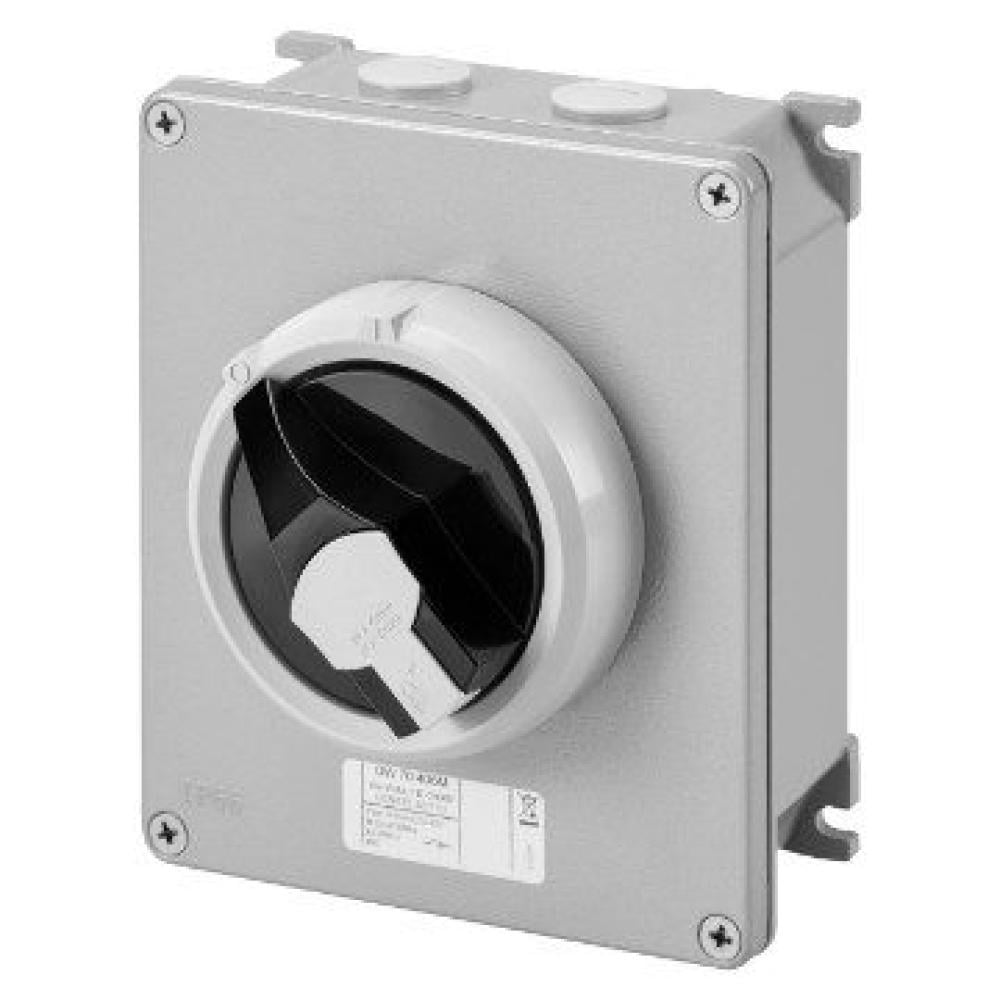

Gewiss Isolator Switch - 40A, 63A, 80A, Metal Box, Control Box (2P, 3P, 3P+N, 4P)
Starts from
265 SAR
Product Description:
The Gewiss 70 RT HP Series Metal Isolator Switches deliver high performance for control and isolation in industrial, residential, and commercial environments. Featuring a robust metal housing, these isolator switches ensure durability and safety in demanding applications.
- Rated Current Options: 40A, 63A, 80A
- Pole Configurations: 2P, 3P, 3P+N, 4P
- Lockable Design: The switch can be locked in both ON and OFF positions for enhanced security.
- IP Rating: IP66/IP67/IP69 for superior protection against dust and water ingress.
- Temperature Range: Operates in temperatures from -25°C to +60°C.
- Cable Entries: M20/25 cable entries for easy wiring and installation.
- Applications: Suitable for electrical panels, industrial automation, and photovoltaic installations.
The metal construction offers increased mechanical resistance (IK08), providing long-lasting performance and reliability in harsh environments.
Technical Specifications:
- Rated Voltage: 415V AC
- Auxiliary Contacts: Max 2 auxiliary contacts (optional)
- Material: Metal Box
- Standards: Complies with international safety standards
Available Options:
- 40A 2P (GW70413M)
- 40A 3P (GW70414M)
- 40A 3P+N (GW70414NM)
- 40A 4P (GW70415M)
- 63A 3P (GW70407M)
- 63A 3P+N (GW70407NM)
- 63A 4P (GW70408M)
- 80A 3P (GW70419M)
- 80A 3P+N (GW70419NM)
- 80A 4P (GW70420M)
