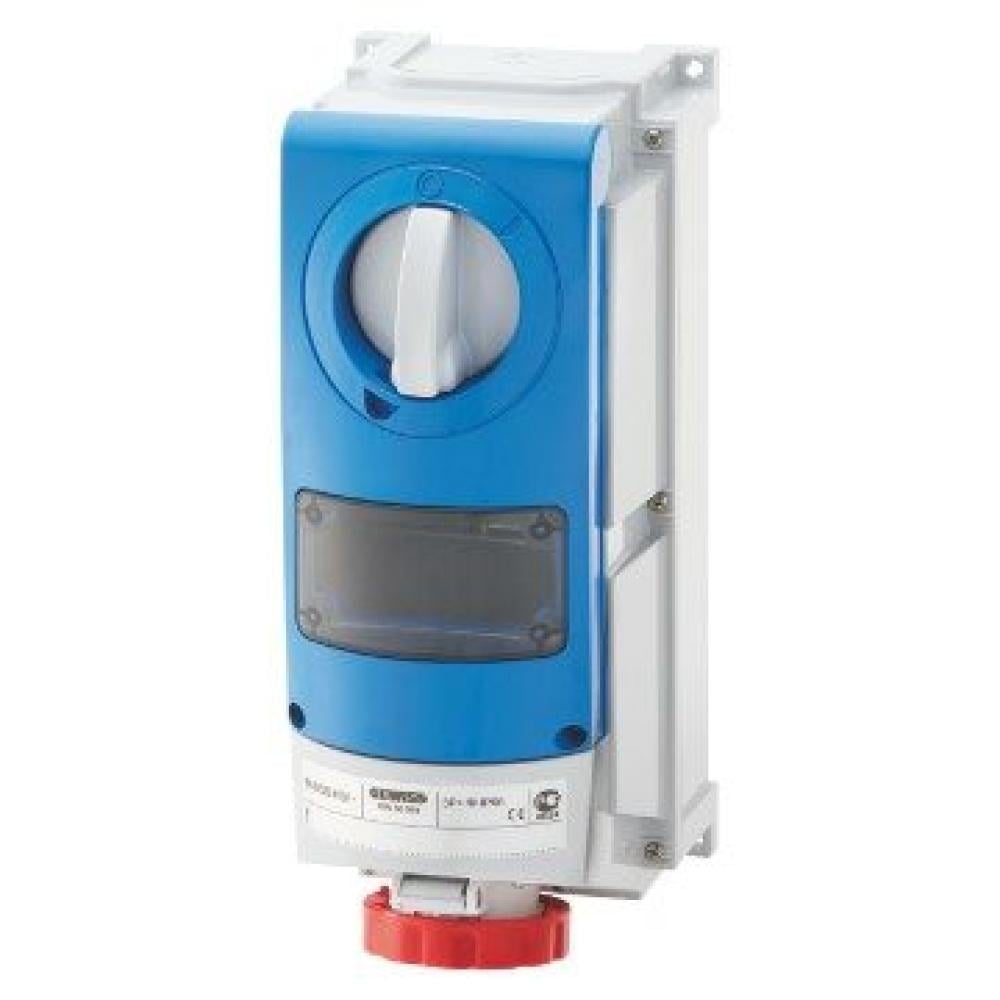

Gewiss GW66874 – 63A Industrial Socket with Interlock – 3P+N+E – 380–415V – IP66
1,550 SAR
The Gewiss GW66874 is a robust industrial socket-outlet with mechanical rotary interlock, conforming to IEC 60309. It features a 3P+N+E pole configuration, supports a 63A current at 380–415V, and offers IP66 waterproof protection. Designed for the most demanding environments, including chemical plants, outdoor installations, and heavy-duty industrial settings.
Key Specifications:
- Product Code: GW66874
- Current Rating: 63A
- Voltage: 380–415V
- Poles: 3P+N+E
- Frequency: 50/60 Hz
- Interlock: Mechanical rotary switch
- Protection Class: IP66 (dust-tight, powerful water jets)
- Impact Resistance: IK10
- Operating Temperature: -25°C to +40°C
- Glow Wire Test: 850°C
- Back-mounting box included, modular base (6M)
- Ideal for: factories, workshops, outdoor industrial installations
