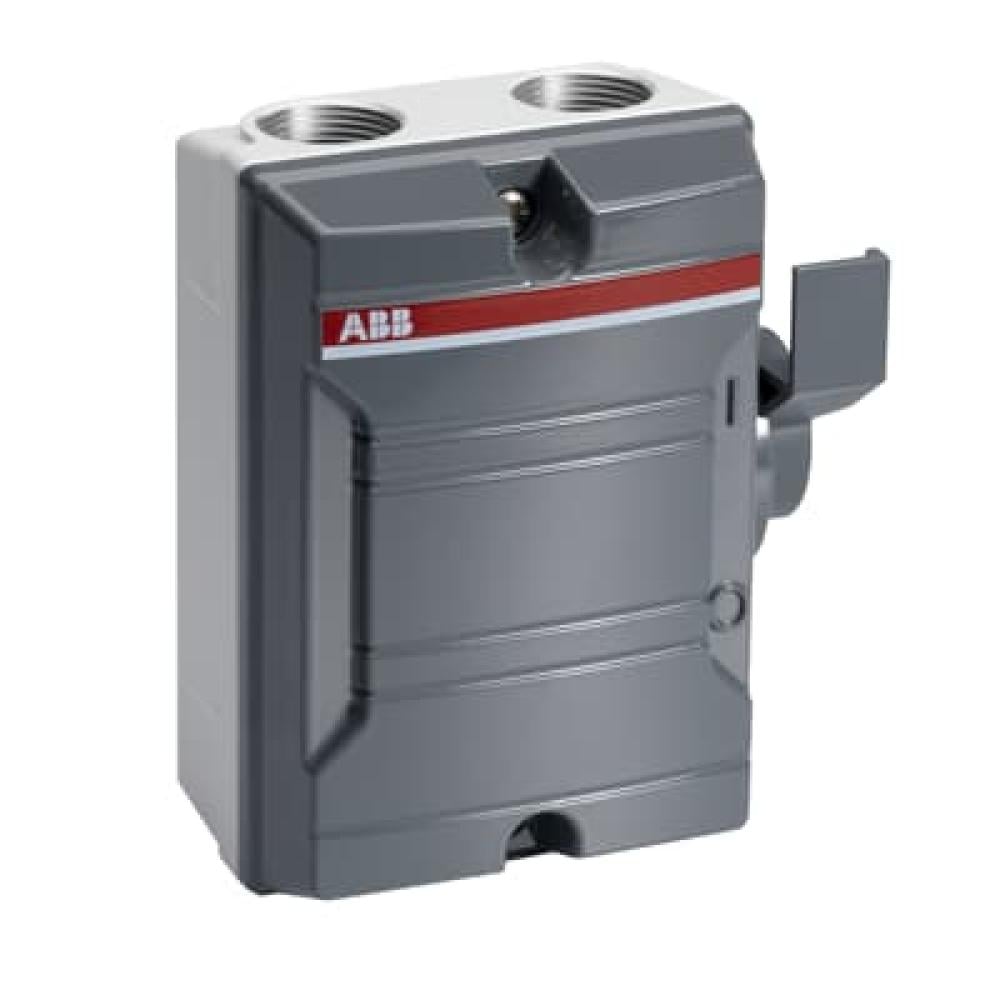

ABB KSE325TPN Enclosed Switch Disconnector - 16A, 3-Pole, IP65
276 SAR
Product Description:
The ABB KSE325TPN Enclosed Switch Disconnector is designed for reliable and safe power isolation in industrial and commercial environments. Engineered to handle demanding applications, this switch disconnector provides robust performance and compliance with international safety standards.
- Rated Operational Current:
- 16A for AC23 duty (frequent switching of motors or highly inductive loads)
- 25A for AC22 duty (general industrial applications with resistive or low-inductive loads)
- Voltage: 415V
- Power Rating:
- AC23: 4 kW (16A)
- AC22: 7.5 kW (25A)
- Number of Poles: 3-Pole for effective isolation in industrial systems
- Enclosure Material: Durable aluminum alloy (Silumin) for excellent corrosion resistance and long-lasting performance
- Protection Rating: IP65, ensuring dust-tight and water-resistant operation for outdoor and indoor use
- Mechanical Resistance: IK08, providing impact resistance in tough environments
- Temperature Range: Operates efficiently between -25°C to +40°C
Equipped with a lockable handle for added safety, this switch disconnector is interlocked to prevent unauthorized access during operation. It supports flexible cable configurations, making it an ideal choice for machinery control, power distribution systems, and industrial isolation.
Technical Specifications:
- Product Code: 2CMA142412R1000
- EAN: 7392696424127
- Rated Current (AC23): 16A
- Rated Current (AC22): 25A
- Rated Voltage: 415V
- Power Rating: 4 kW (AC23), 7.5 kW (AC22)
- Number of Poles: 3
- Enclosure Material: Aluminum alloy (Silumin)
- Protection Degree: IP65
- Mechanical Impact Resistance: IK08
- Mounting Type: Surface-mounted
- Cable Capacity: 0.75 mm² to 10 mm²
- Standards Compliance: IEC 60947-1 and IEC 60947-3
