Floor Box IP67 Waterproof In-Screed (Stainless Steel) - Burland UK
6,000 SAR
🔹 Product Name:Burland UK – IP67 Waterproof In-Screed Floor Box (Stainless Steel)
🔹 General Description:
The Burland UK IP67 In-Screed Floor Box is a premium floor outlet system designed for concrete or marble floors where a waterproof and dustproof connection point is required.
It provides safe, discreet access to power, data, and AV connections while maintaining a seamless floor finish.

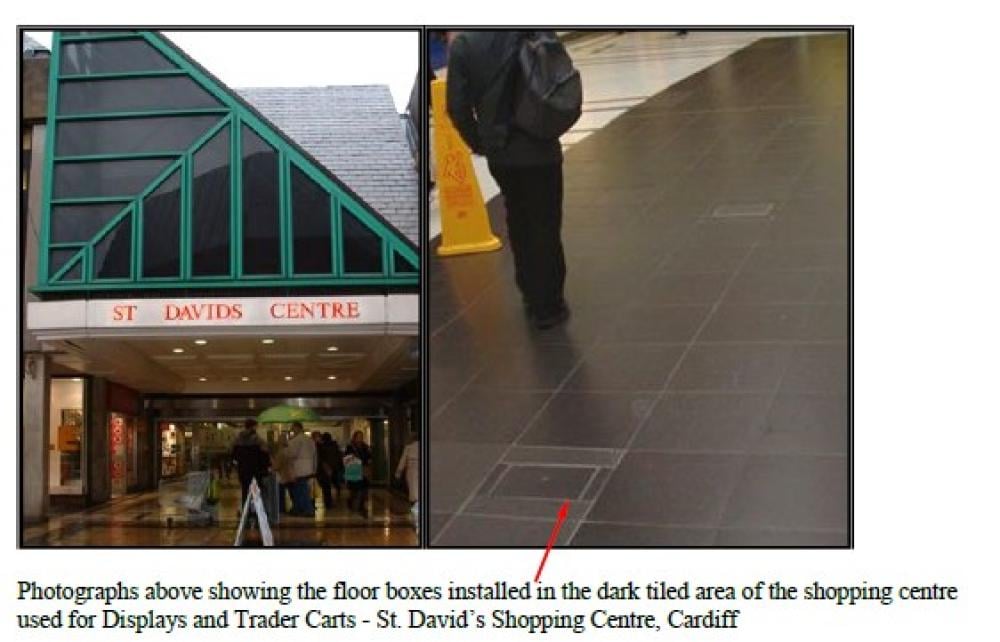

When sealed, the unit achieves IP67 protection, making it ideal for environments cleaned using wet methods such as airports, shopping malls, and hotels.
🔹 Technical Specifications:
- Product Type: In-Screed Floor Box
- Ingress Protection: IP67 (Fully sealed when lid and gasket are fitted)
- Materials:

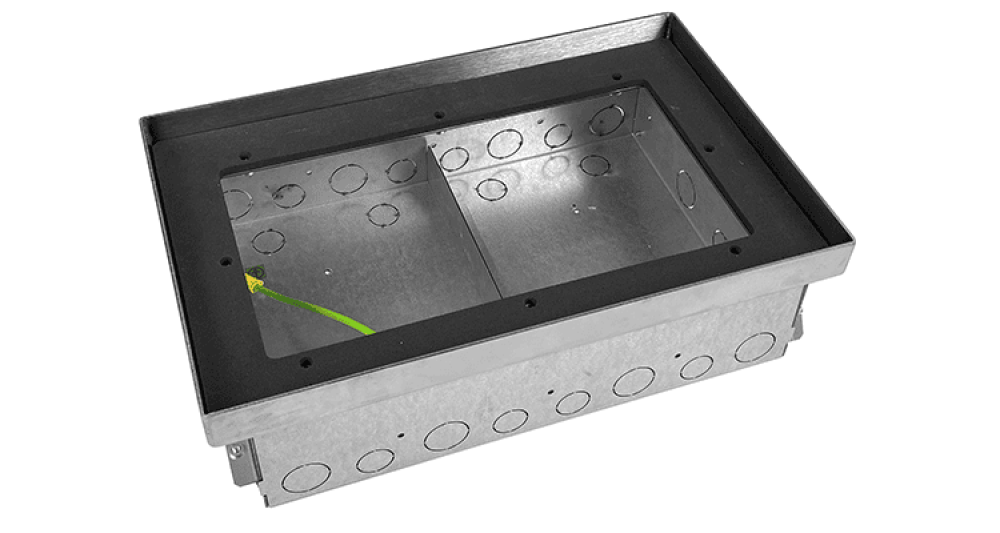

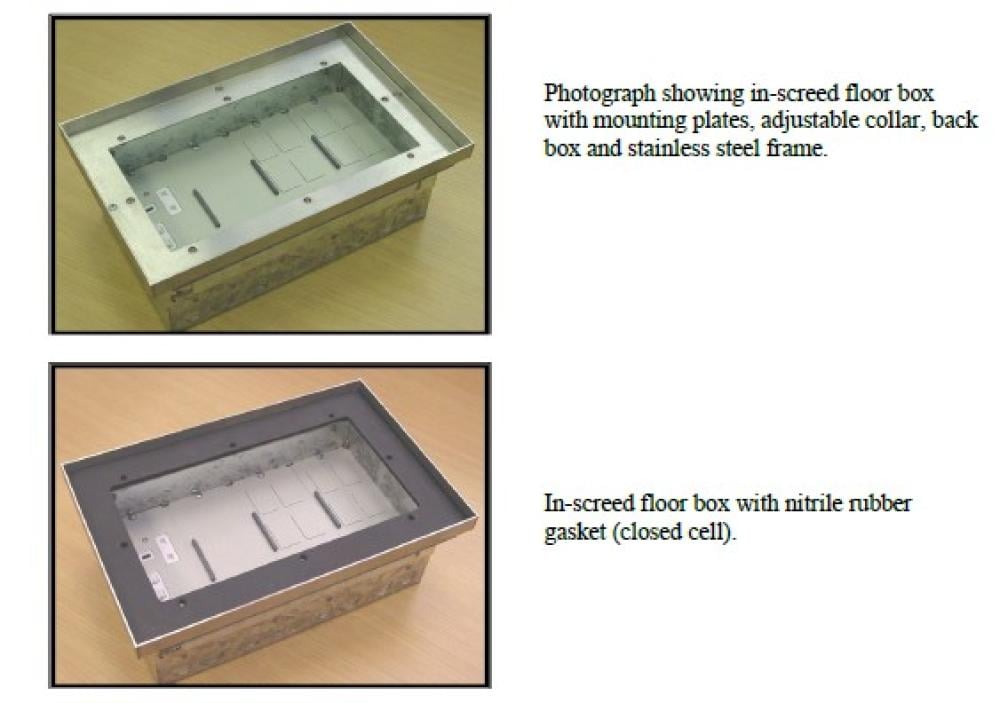

- Base Box: 1.2 mm galvanized steel
- Frame & Lid: 2–4 mm brushed stainless steel
- Gasket: Closed-cell Nitrile Rubber
- Finish Options: Brushed Stainless Steel (standard) – Optional Brass, Antique Bronze, or Bead-Blasted finish

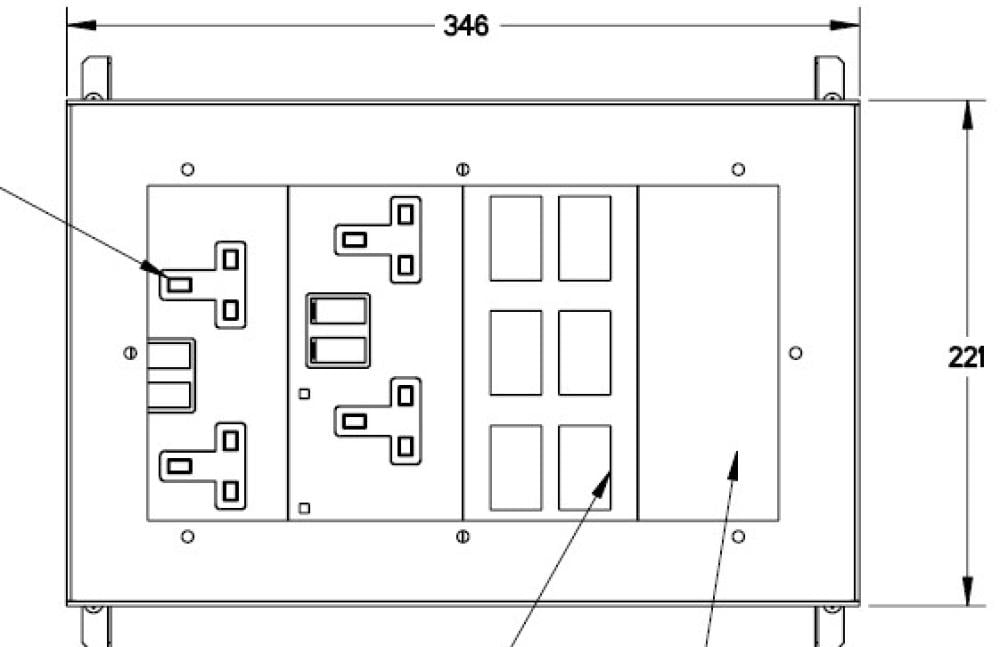

- Lid Dimensions: 211 × 336 mm – 15 mm recessed depth (adjustable)

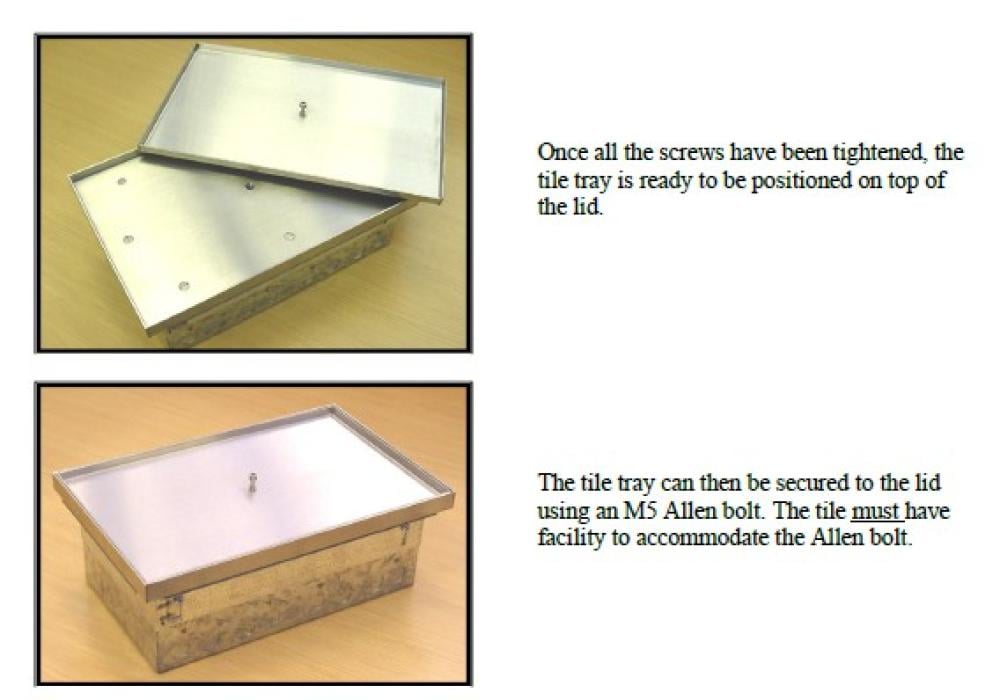

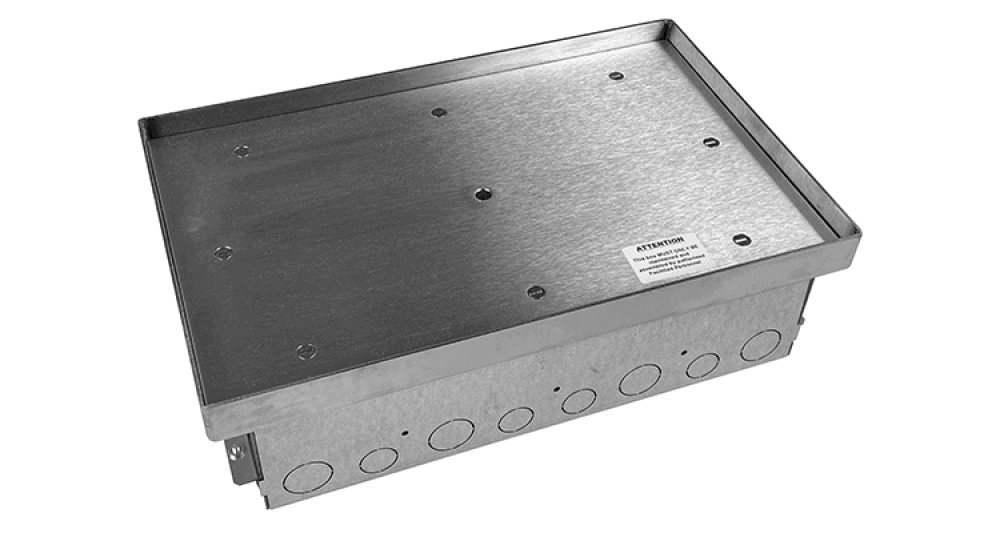

- Sealing System: Allen screws with rubber O-rings and nitrile gasket for watertight closure
- Cover Options:

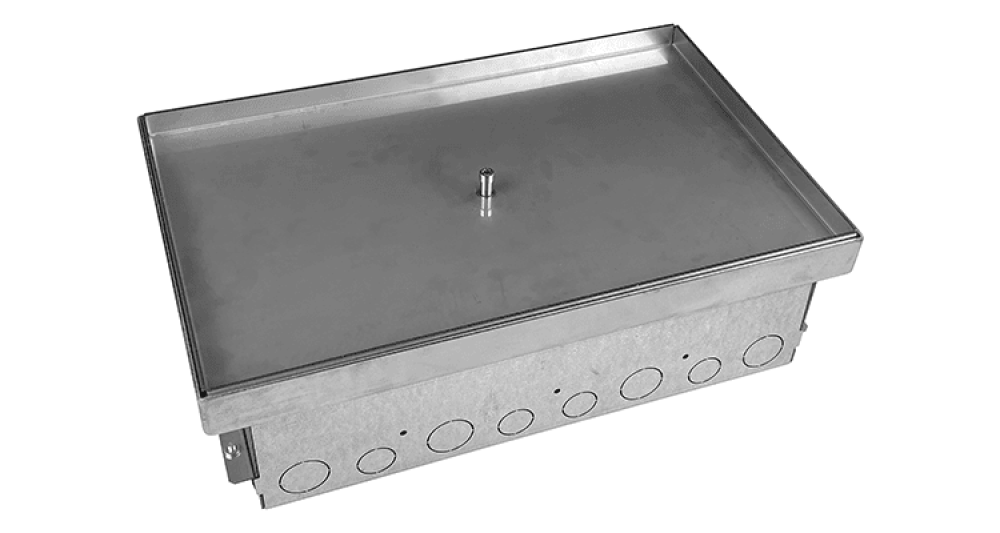

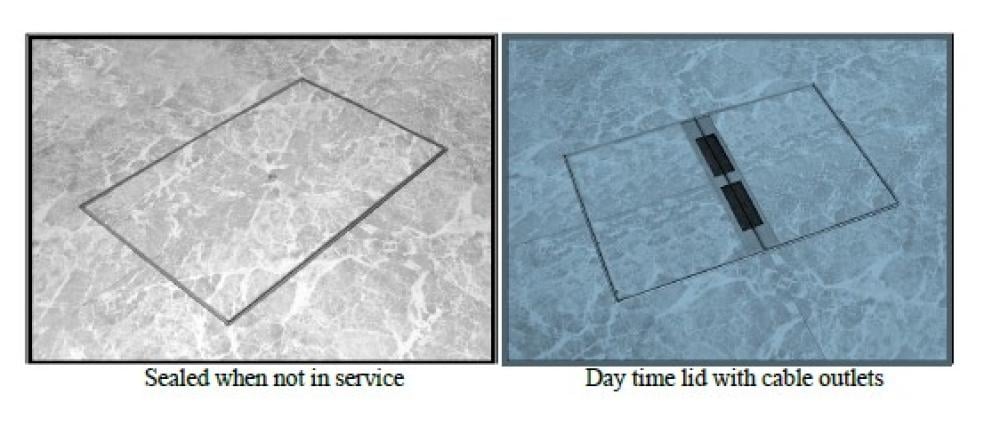

- IP67 sealed lid

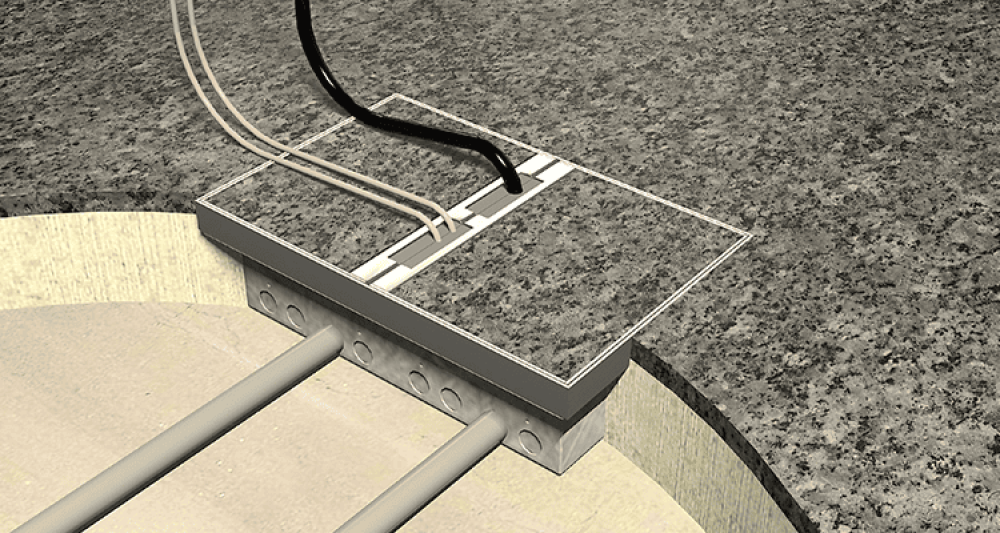

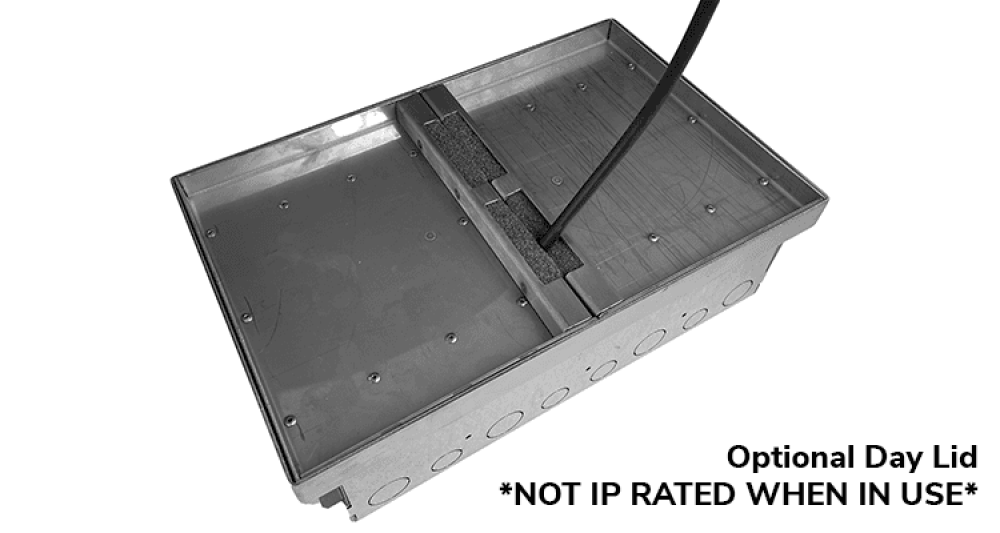

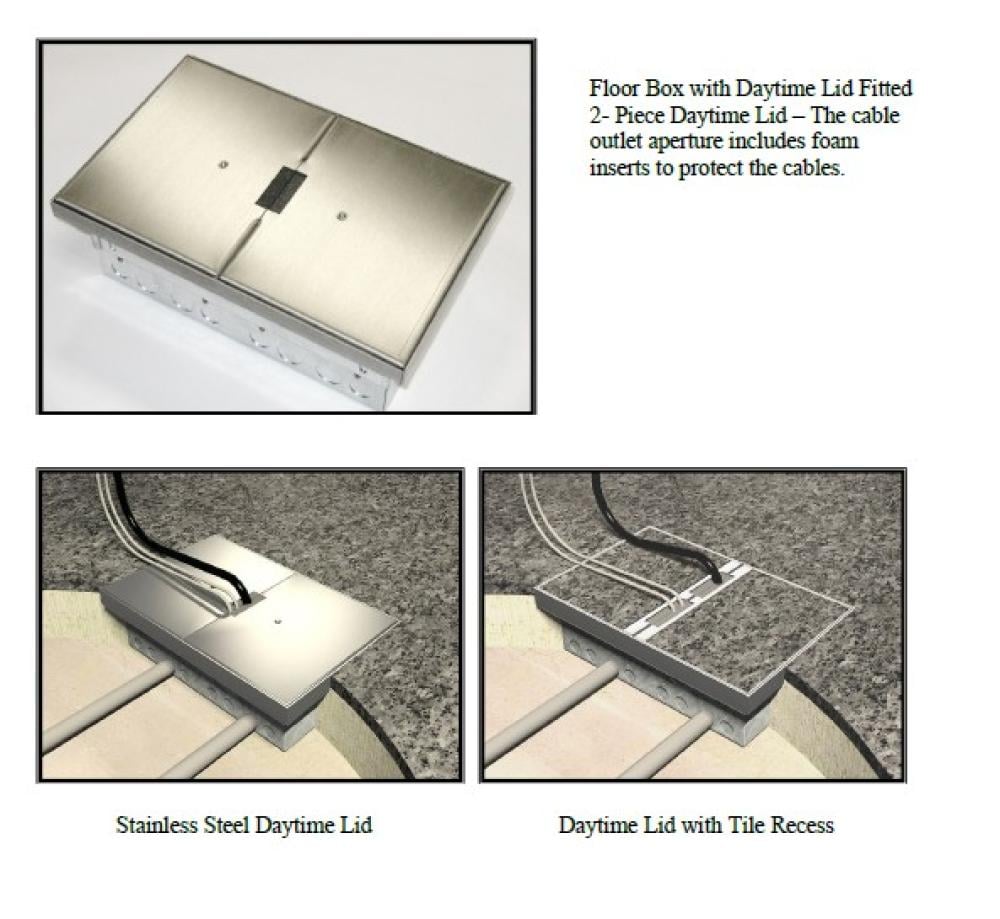

- Optional Day-Time Lid with cable outlets (non-IP67)
- Outlet Compatibility: Power sockets (UK 13A / Schuko / French), Data (RJ45), HDMI, XLR
- Height Adjustment: ±10 mm with M4 screws
- Temperature Range: −10°C to +50°C
- Origin: United Kingdom (UK)
🔹 Key Features:
- IP67 waterproof and dustproof when sealed.
- Robust stainless steel construction for long life and durability.

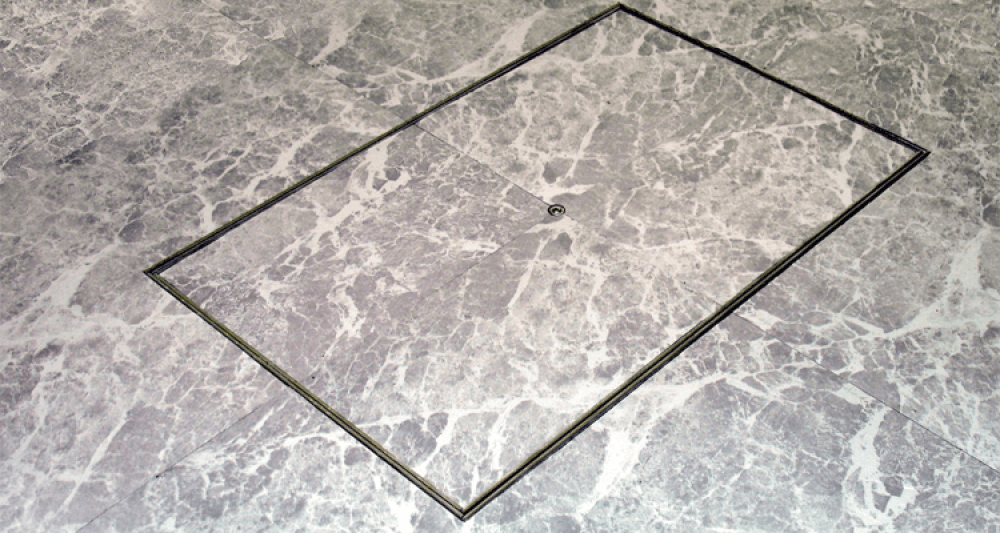

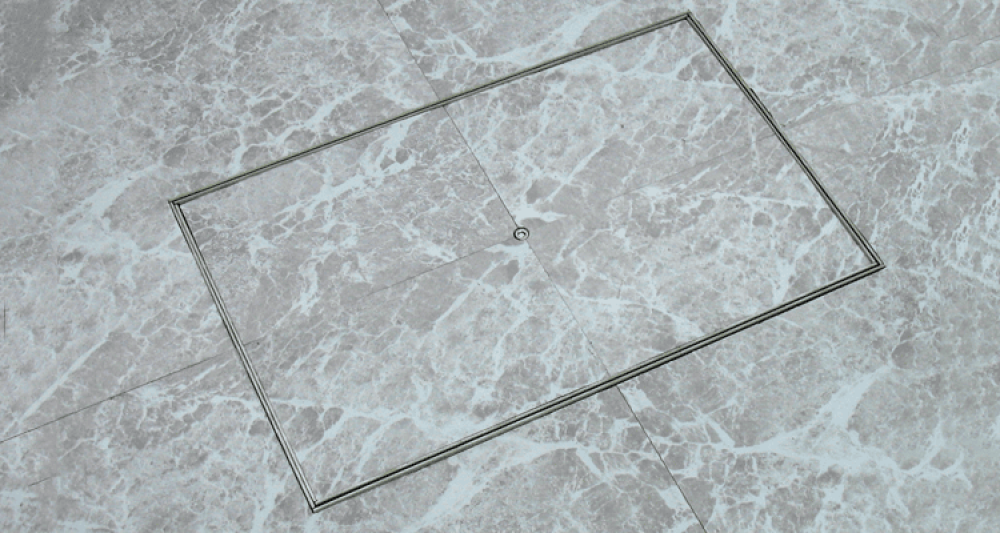

- Suitable for hard floor applications (marble, granite, ceramic).
- Customizable outlet configurations for power, data, and AV needs.
- Optional Day-time lid for use when services are connected.
- Fully compliant with IEE wiring standards.
- Designed and manufactured in the UK.
🔹 Applications:
Hotels – Malls – Airports – Offices – Villas – Exhibition Areas
🔹 Installation Notes:

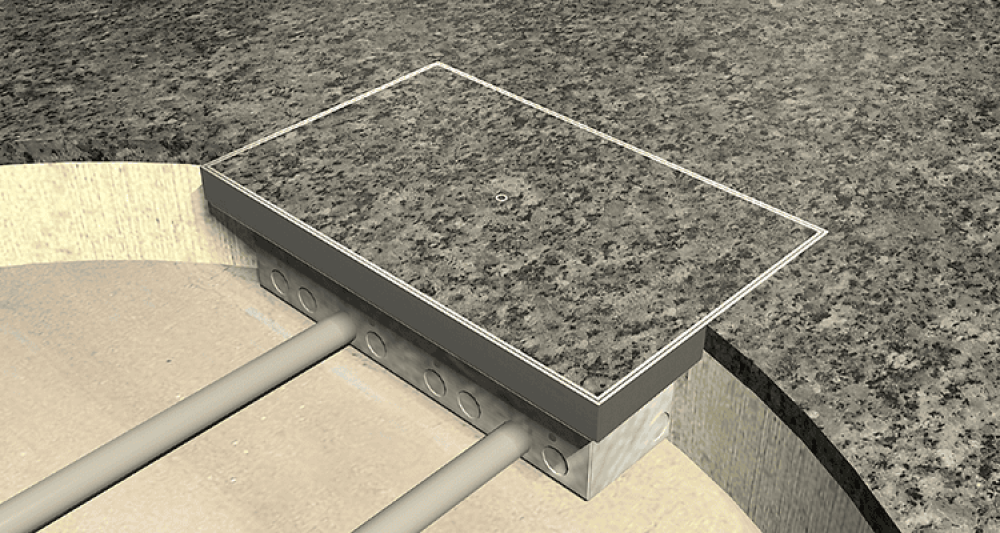

- Must be installed before floor finishing (during screed phase).
- Tighten screws manually (do not use power drivers).
- Ensure all rubber seals are correctly placed for IP67 protection.
- Use only by qualified electricians following IEE standards.
🔹 Warranty & Compliance:
Manufactured in the UK with 12-month warranty and compliant with European quality and safety standards.
